AC-2000 Series Colposcope

Colposcope offered in single-magnification or 3-step configurations, with a 1080P Full HD video camera on selected models. Apochromatic optics, a 300 mm focal length, a built-in green filter, measuring circles and LED illumination on a compact five-wheel base.

3-step total magnification: 3.75X–15X
Focal length: 300 mm
Light intensity: >30,000 lux

Highlights

Apochromatic optical design
3-step (3.75X / 7.5X / 15X) or single (7.5X) magnification, with a 300 mm focal length
Individually adjustable 16.7X eyepiece; the right eyepiece has two built-in measuring circles
User-selectable built-in green filter for enhanced contrast

Full description

Available configurations

AC-2111: single magnification with Full HD video camera.
AC-2110: single magnification without camera.
AC-2311: 3-step magnification with Full HD video camera.
AC-2310: 3-step magnification without camera.

Ask us which option suits your practice.

Speak with our team

View spec sheet PDF Watch the product videos (2)

Delivery & support

Ask us about availability and delivery times.

Local support in Australia. Advice, demonstrations and service. Contact us

Specialties: OB / GYN
Product code: ALMAC2111

Product Overview

Description

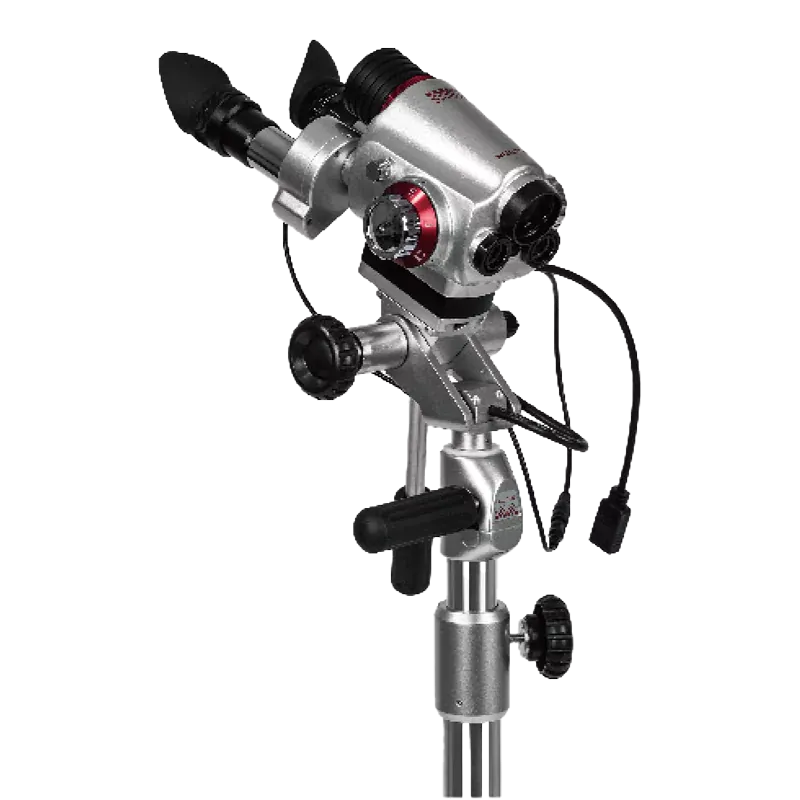

AC-2000 optical head with binocular eyepieces and adjustment controls

See the detail in the optical design.

A compact binocular system with single- or three-step magnification configurations.

Key Features

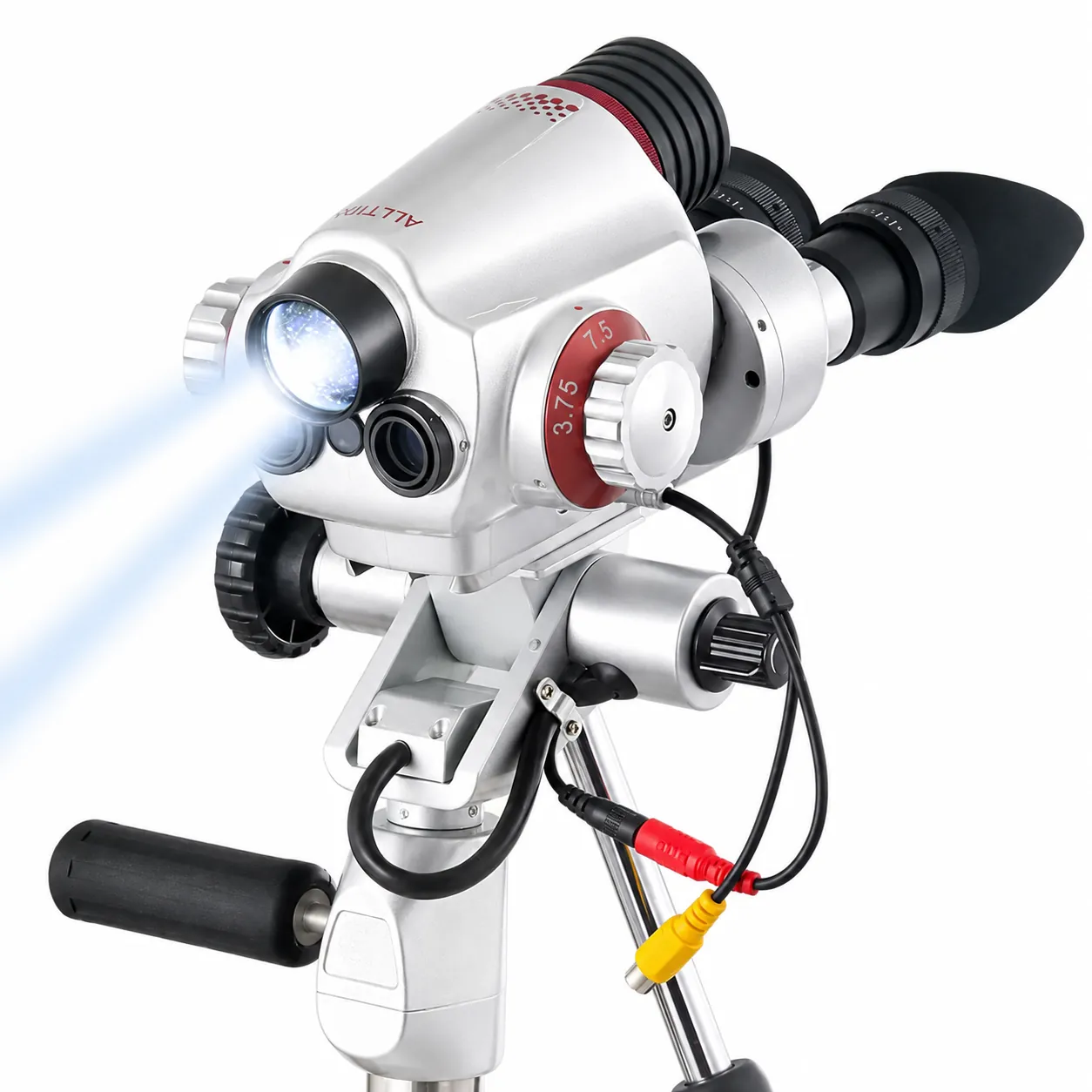

AC-2000 objective with its LED illumination illustrated — Coaxial illumination
Manufacturer illustration of the LED light path.

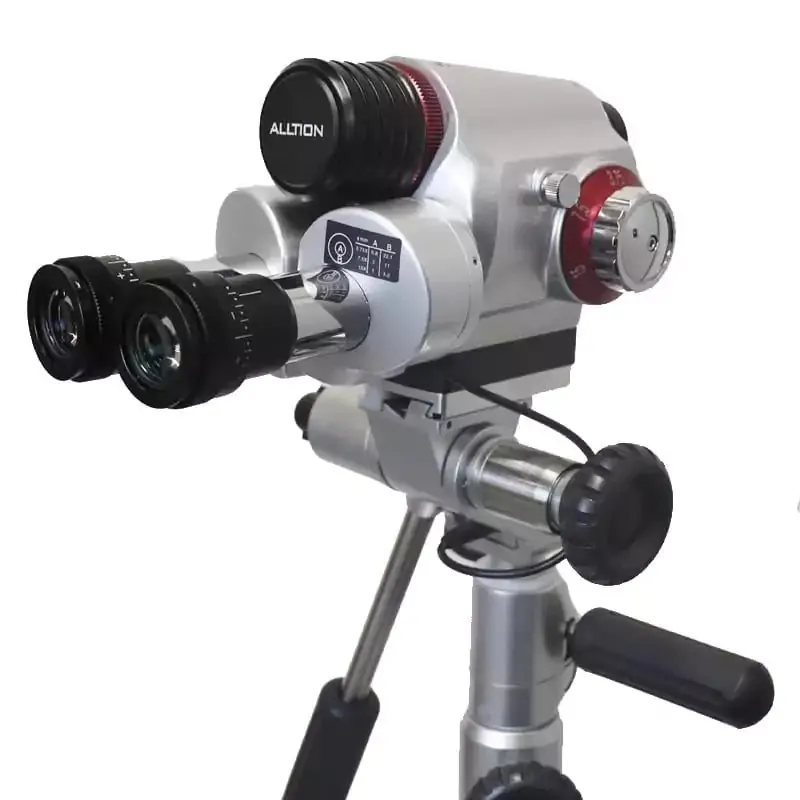

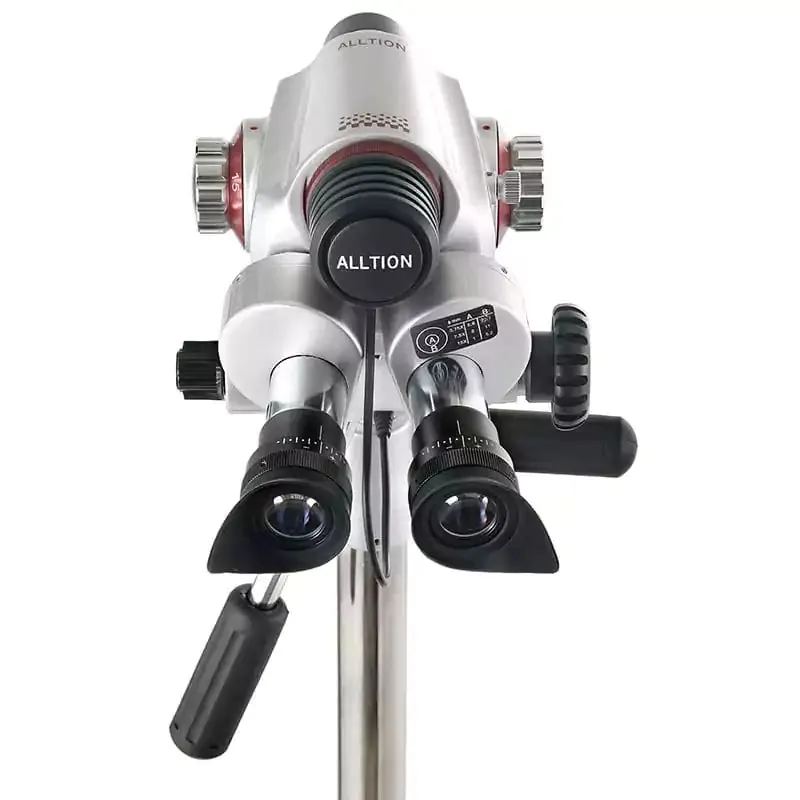

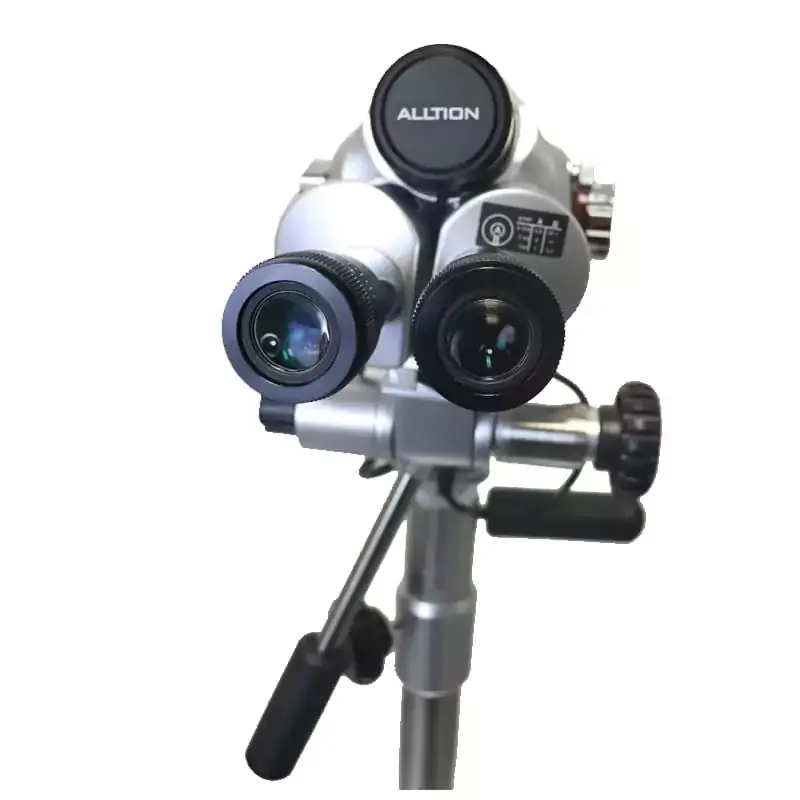

Front view of the AC-2000 eyepieces and positioning handles — Positioning by hand
A closer view of the handles and optical head.

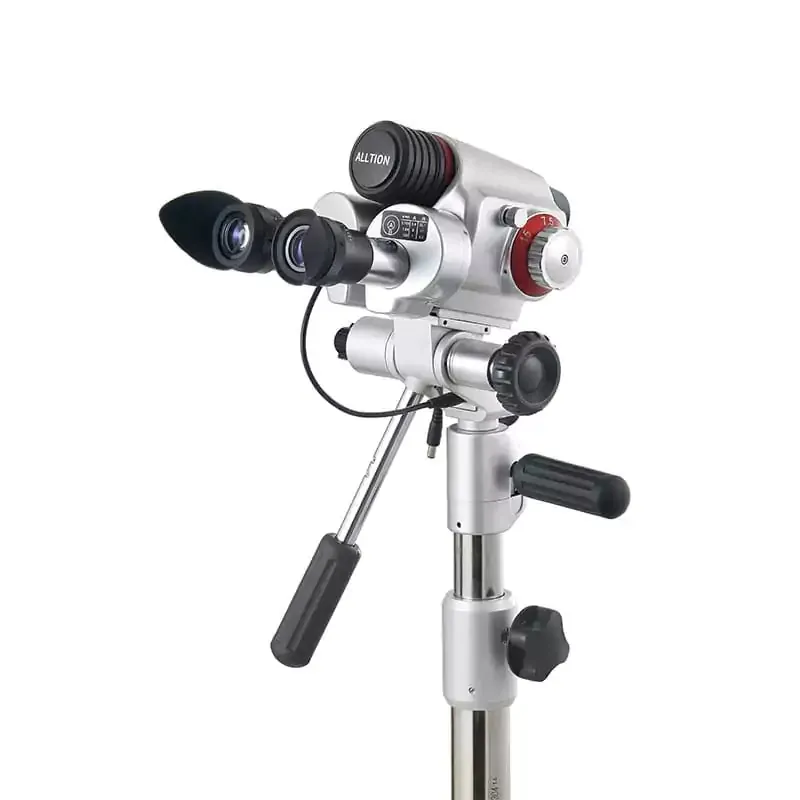

Complete AC-2000 colposcope on its mobile stand — Compact mobile setup
The colposcope on its rolling base.

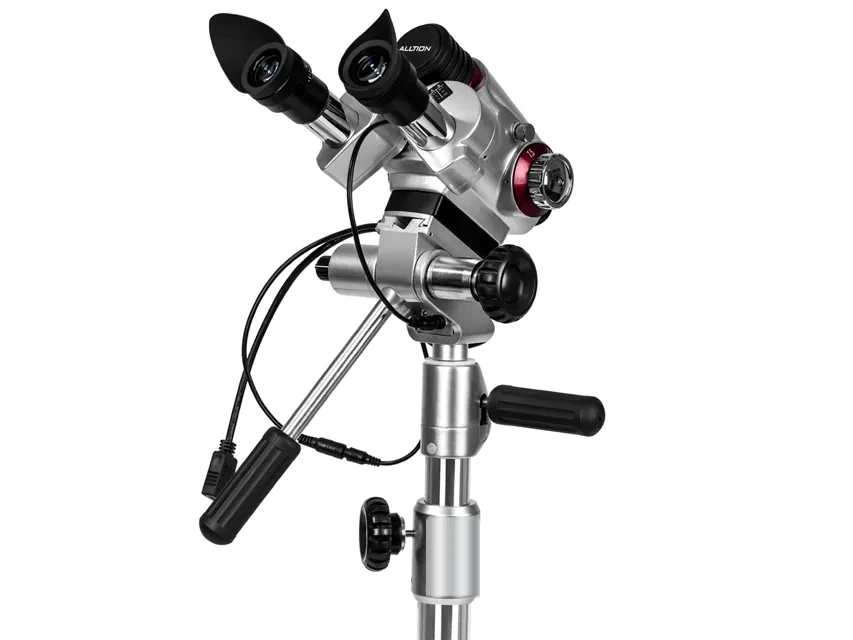

AC-2311 colposcope with integrated Full HD camera — Camera-equipped models
Models ending in 1 include an integrated Full HD camera.

Choose your magnification. Add your camera.

The AC-2110 and AC-2111 use single magnification; the AC-2310 and AC-2311 use three steps. Models ending in 1 include a camera. This makes the optical and imaging choice explicit at specification time.

Apochromatic optics, coaxial LED illumination and an integrated green filter form the viewing system. Two optical circles provide a visual size reference; choose the stand and mounting arrangement for your room.

3-step total magnification: 3.75X–15X
Focal length: 300 mm
Light intensity: >30,000 lux

Images may show optional accessories.

Full feature list

Apochromatic optical design.
3-step (3.75X / 7.5X / 15X) or single (7.5X) magnification, with a 300 mm focal length.
Individually adjustable 16.7X eyepiece; the right eyepiece has two built-in measuring circles.
User-selectable built-in green filter for enhanced contrast.
LED illumination over 30,000 lux, with brightness adjustment and an easily changeable bulb rated over 10,000 hours.
Integrated 1080P Full HD video camera on the AC-2111 and AC-2311.
Light 11 kg unit on a five-wheel base; supplied assembled.

Planning your setup

Check the AC-2000 model and stand type, and ask Alltion Australia for the operating manual that matches the delivered configuration.

Prepare for your handover

Discuss AC-2000 Series

Specifications

View spec sheet PDF

Optics & observation

AC-2000 Series Optics & observation
Complete units	AC-2110 single magnification, straight binocular, no camera · AC-2111 single magnification, straight binocular, Full HD video camera · AC-2310 3-step, straight binocular, no camera · AC-2311 3-step, straight binocular, Full HD video camera
Total magnification	3.75X / 7.5X / 15X (3-step models); 7.5X (single-magnification models)
Focal length	300 mm
Field of view	79 / 39 / 19 mm diameter (3-step models); 39 mm (single-magnification models)
Depth of field	4.5 / 1.13 / 0.76 mm (3-step models); 1.13 mm (single-magnification models)
Eyepiece	Individually adjustable 16.7X eyepiece; two measuring circles built into the right eyepiece
Optics	Apochromatic optical design
Video	1080P Full HD real-time output module (integrated Full HD video camera on AC-2111 and AC-2311)
Working height	950–1250 mm; gross and fine height-adjustment handles
Focus	Fine focus adjustment handles
Assembly	Supplied completely assembled and ready for use once powered on

Light & illumination

AC-2000 Series Light & illumination
Light intensity	>30,000 lux; built-in rheostat for brightness adjustment
Illumination	LED bulb, easily changeable; bulb life over 10,000 hours / 10 years
Filter	User-selectable built-in green filter for enhanced contrast

Positioning & installation

AC-2000 Series Positioning & installation
Assembly kits / stand options	Assembly-kit versions (colposcope head, head holder and power supply, without post and base); tilting-stand versions
Weight / base	11 kg; base with 5 wheels (tilt-base model also available)
Main power supply	100–240 V

Specifications may vary by option or configuration. Confirm the supplied specifications and compatibility before ordering.
