AC-5000 Series Colposcope

A 5-step optical colposcope with apochromatic optics, a 250–430 mm variable objective, LED illumination and a built-in Full HD or 4K camera depending on configuration, on a mobile floor stand with swing arm.

Manual magnification: 5-step
Variable objective: 250–430 mm
Built-in camera, by model: Full HD / 4K

Highlights

Manual 5-step magnification: 2.8X to 17.7X with the 300 mm objective
250–430 mm variable objective standard; 300 mm objective optional
Straight binocular with interpupillary adjustment; 45° or 0–180° head optional
Blue filter, green filter and natural-white illumination; NoGlare mode and laser filter optional

Full description

Available options

Built-in Full HD (1080P) or 4K camera.
45° or 0–180° binocular head (straight head standard).
300 mm objective (250–430 mm variable standard).
30° or 45° binocular extender with angle rotation device.
NoGlare mode or laser filter.

Ask us which option suits your practice.

Speak with our team

View spec sheet PDF Watch the product videos (3)

Delivery & support

Ask us about availability and delivery times.

Local support in Australia. Advice, demonstrations and service. Contact us

Specialties: OB / GYN
Product code: ALMAC5000

Product Overview

Description

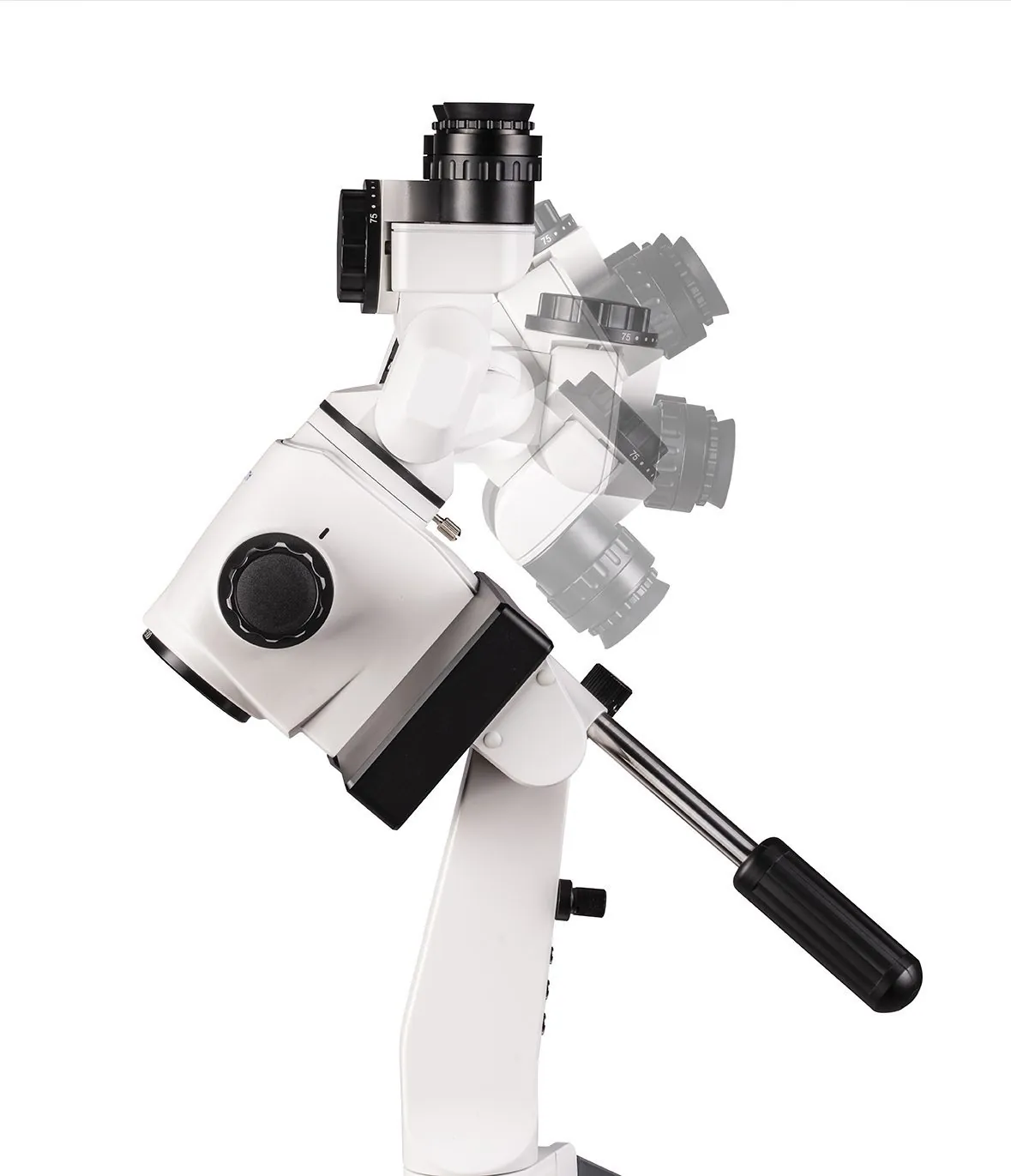

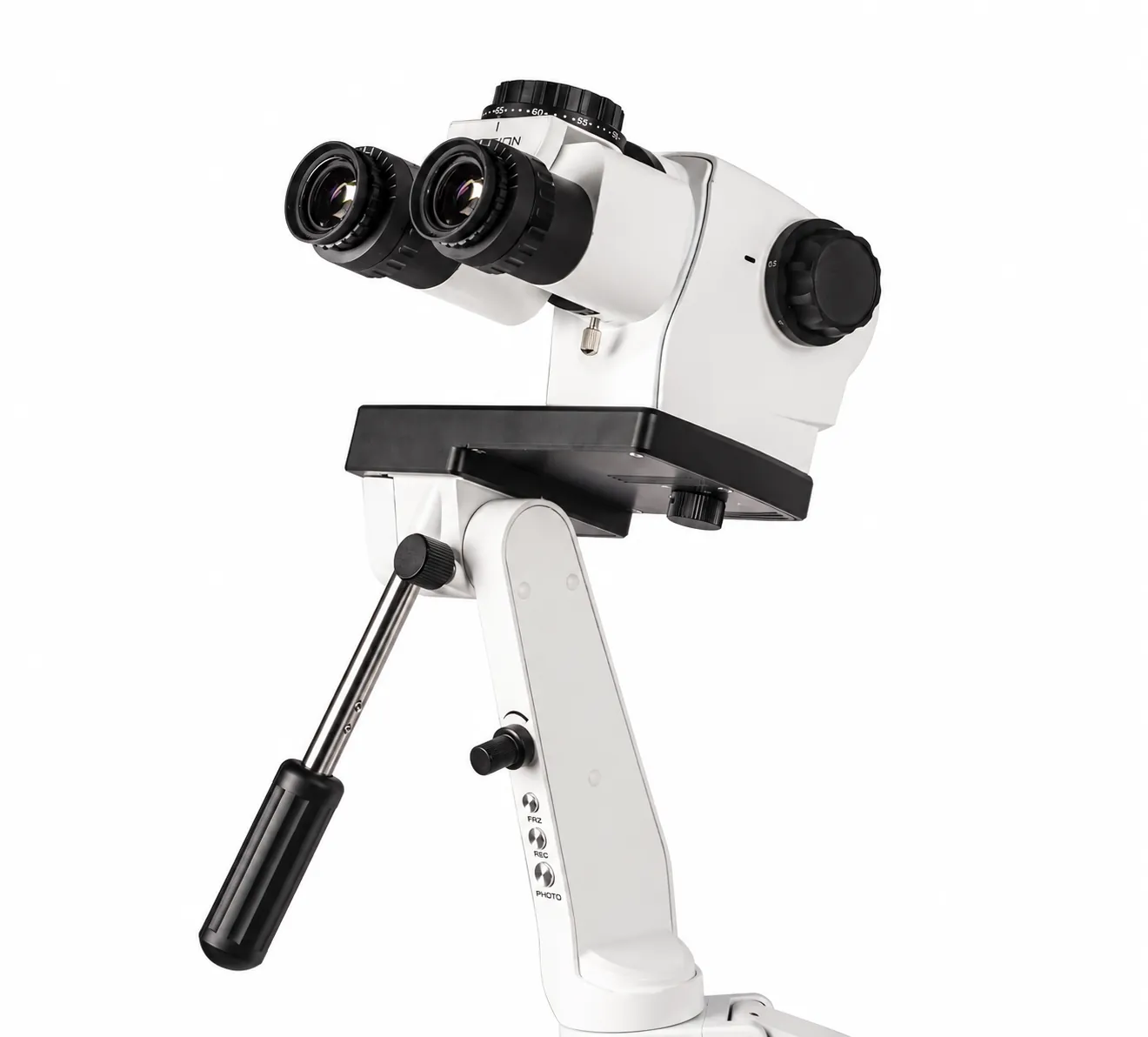

AC-5000 colposcope optical head and viewing assembly

Position the view around your patient.

The swing arm and adjustable optical head support the examination position.

Key Features

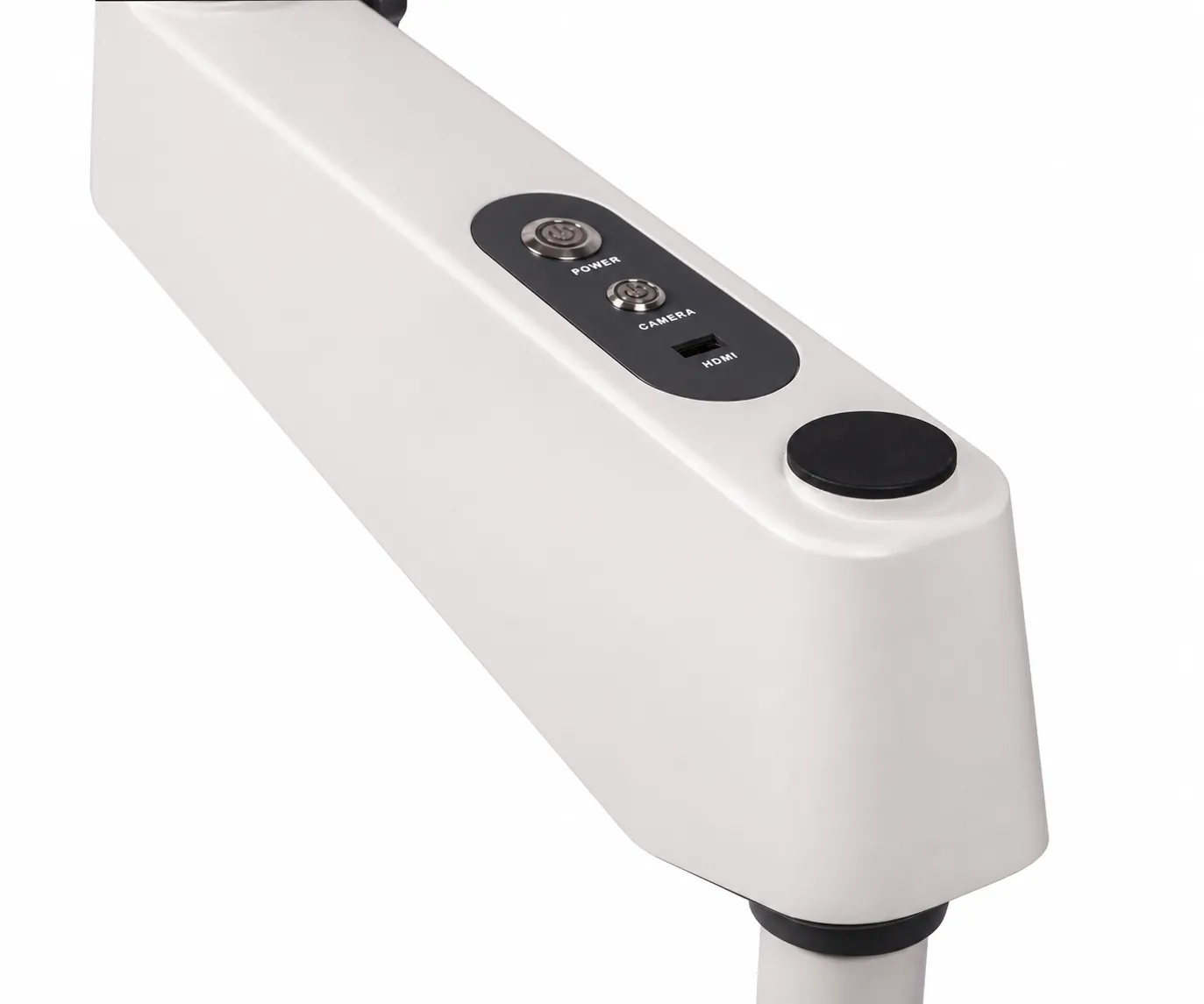

AC-5000 arm-mounted control panel — Arm-mounted controls
Controls integrated into the support arm.

Hand adjusting the AC-5000 positioning handle — Adjustment close to hand
Fine positioning at the optical head.

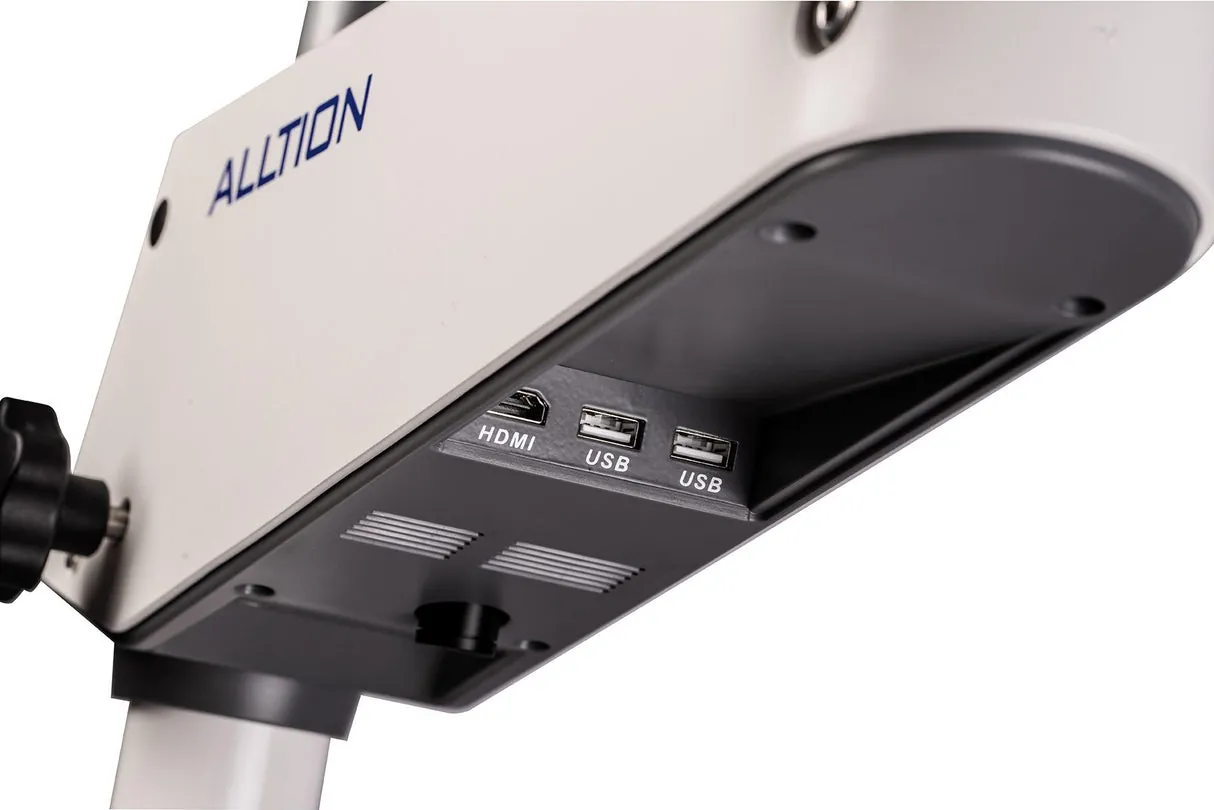

Underside of the AC-5000 arm showing its imaging connections — Imaging connections
A closer view of the integrated connection panel.

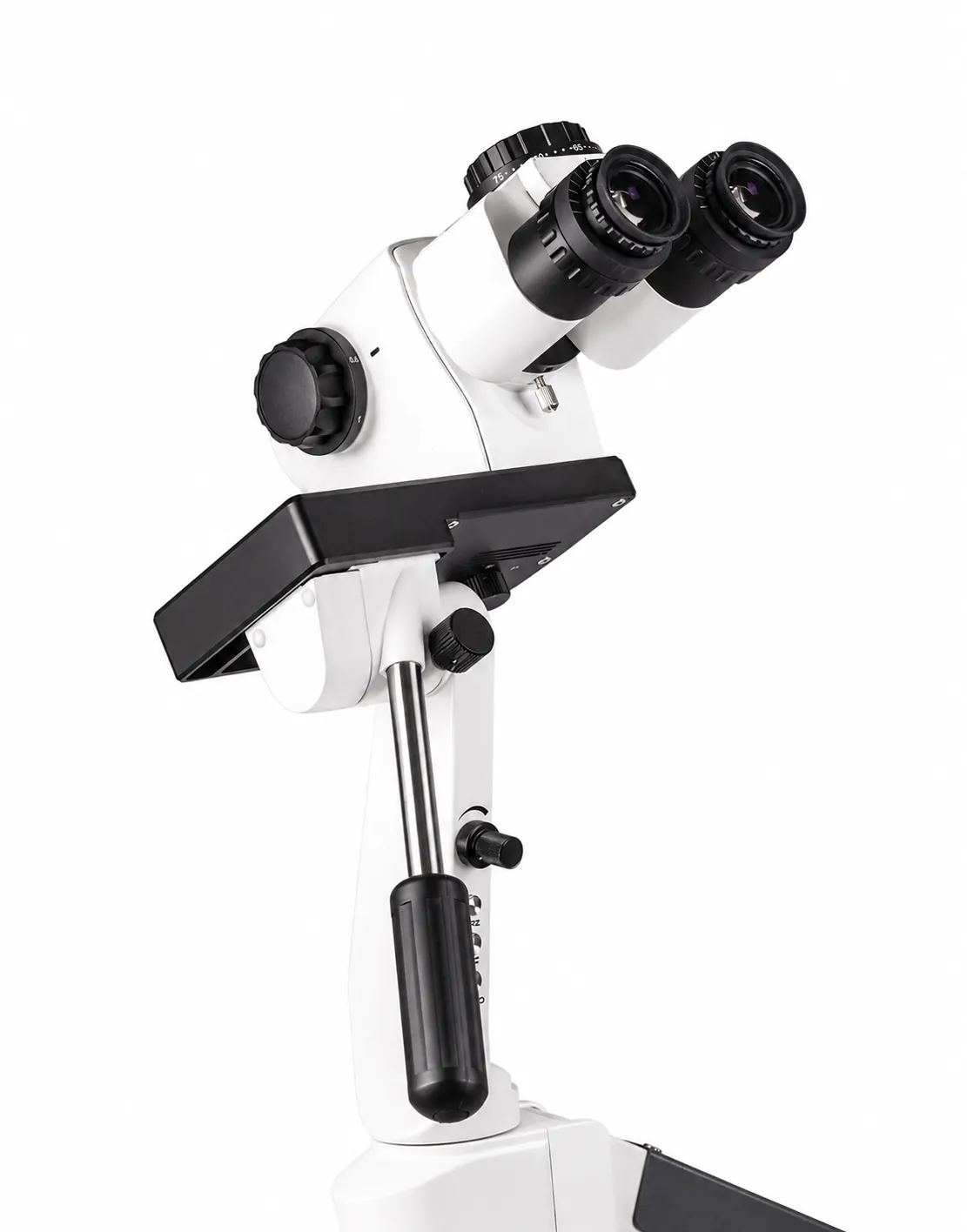

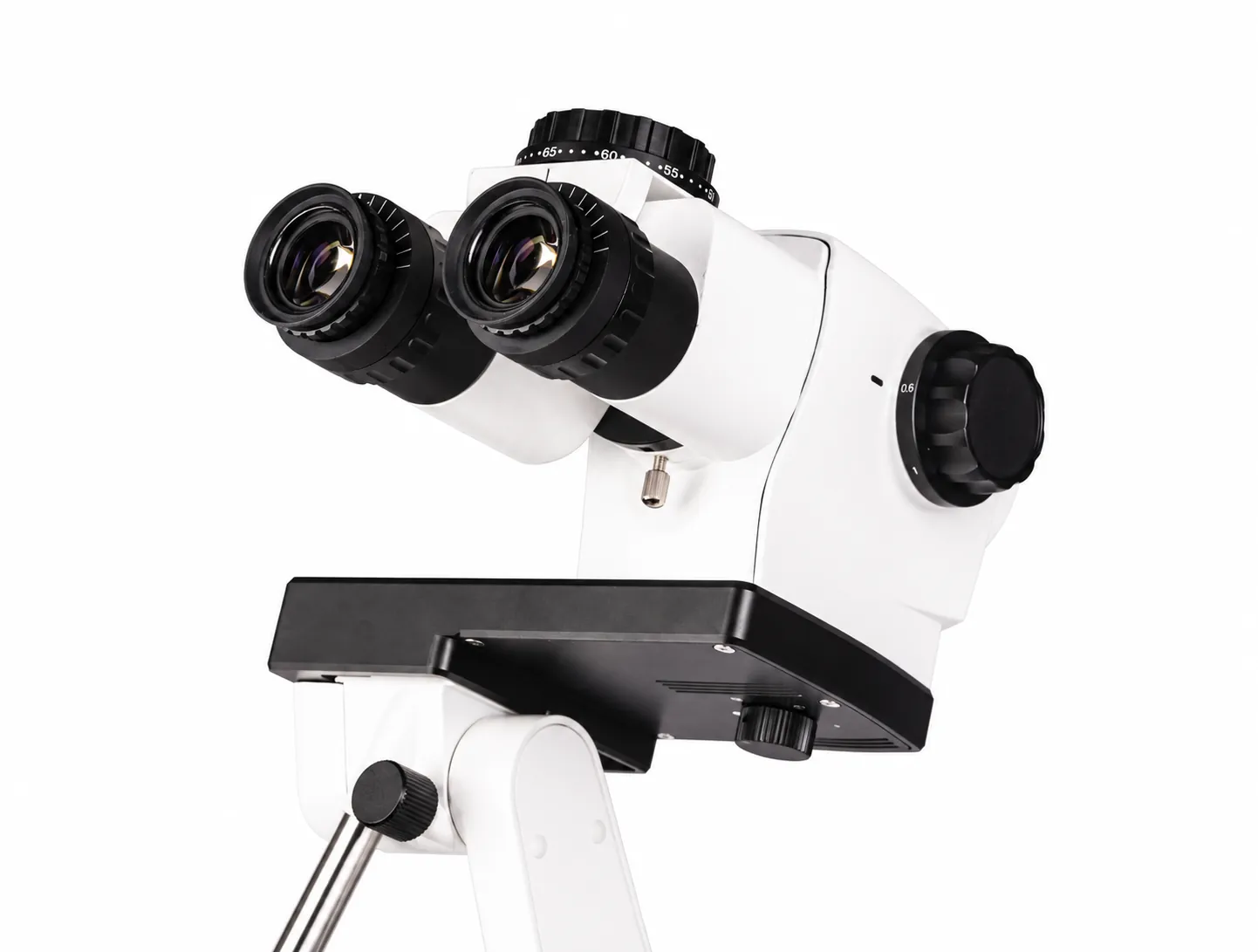

AC-5000 straight binocular head on its support arm — Straight binocular head
Interpupillary adjustment with 12.5X eyepieces.

An integrated view of your workflow.

The mobile floor stand and swing arm support positioning around the examination area. A variable objective, horizontal adjustment and integrated cable routing bring the optical and physical setup together.

The built-in camera, Full HD or 4K depending on configuration, provides image capture, playback and comparison tools. Blue filter, green filter and natural-white illumination are standard, with NoGlare mode and a laser filter available as options.

Manual magnification: 5-step
Variable objective: 250–430 mm
Built-in camera, by model: Full HD / 4K

Options & accessories

45° or 0–180° binocular head
10X/21B eyepieces
30° or 45° binocular extender with rotation device
300 mm objective
Laser filter

Ask us which suit your setup.

Images may show optional accessories.

Full feature list

Manual 5-step magnification: 2.8X to 17.7X with the 300 mm objective.
250–430 mm variable objective standard; 300 mm objective optional.
Straight binocular with interpupillary adjustment; 45° or 0–180° head optional.
Blue filter, green filter and natural-white illumination; NoGlare mode and laser filter optional.
Horizontal adjustment and built-in cable design.
Built-in Full HD or 4K camera, depending on configuration, with monitor bracket.
Mobile floor stand with 5 wheels and swing arm.

Planning your setup

Record the AC-5000 configuration and ask Alltion Australia for the operating manual that matches your optics, stand and camera.

Prepare for your handover

Discuss AC-5000 Series

Specifications

View spec sheet PDF

Optics & observation

AC-5000 Series Optics & observation
Magnification	Manual 5-step: 2.8 / 4.4 / 7.1 / 11.3 / 17.7X with 300 mm objective
Binocular	Straight binocular with interpupillary distance adjustment (standard); optional 45° binocular or 0–180° adjustable binocular
Interpupillary distance	50–75 mm
Eyepiece	12X/18B standard; 10X/21B optional; diopter ±7D
Optics	Premium apochromatic technology
Optical extender	Optional 30° or 45° binocular extender with angle rotation device
Objective	250–430 mm variable objective standard; 300 mm objective optional

Light & illumination

AC-5000 Series Light & illumination
LED life	≥50,000 hours
Illumination	Maximum 60,000 lux with 300 mm objective
CRI / colour temperature	CRI ≥85%; 5700K
Illumination modes	Standard: blue filter / green filter / natural white light. Optional: NoGlare mode / laser filter

Imaging & documentation

AC-5000 Series Imaging & documentation
Camera configuration	Built-in Full HD (1080P) or built-in 4K camera, depending on configuration; monitor bracket
Camera sensor	1/2 inch Sony high-sensitivity, low-noise CMOS; 4K camera: 1/1.8 inch Sony 4K CMOS
Camera resolution	HD 1080P 60 FPS (16:9) or 4K 3840 × 2160 60 FPS (16:9), by camera configuration
Storage	External USB flash disk (FAT32 / NTFS, up to 64GB); JPG pictures and MP4 video
Camera functions	Freeze, photo, video, automatic exposure, white balance, playback and cross curve
Image controls	Exposure, brightness, gain, red/blue gain, saturation, contrast, definition and HDR; horizontal/vertical flip, zoom, AOI and image comparison
Connectivity / systems	Wi-Fi and HDMI transmission (double HDMI outlet); Windows; Android and iOS

Positioning & installation

AC-5000 Series Positioning & installation
Power	Input AC100–240V, 50/60Hz; output DC12V/3A; 25–60VA
Support	Mobile floor stand with 5 wheels; swing arm
Positioning	Joystick-operated head; horizontal adjustment; built-in cable design

Specifications may vary by option or configuration. Confirm the supplied specifications and compatibility before ordering.
