Entry-level dental operating microscope with 5-step magnification, apochromatic optics, LED illumination with five light modes, and fixed or variable objectives. Camera configurations use the ALL-CAM2 or ALL-CAM4.
Magnification
5-step
With 250 mm objective
3.4–21X
Camera options
ALL-CAM2 / ALL-CAM4
Highlights
Manual 5-step magnification: 3.4X to 21X with the 250 mm objective

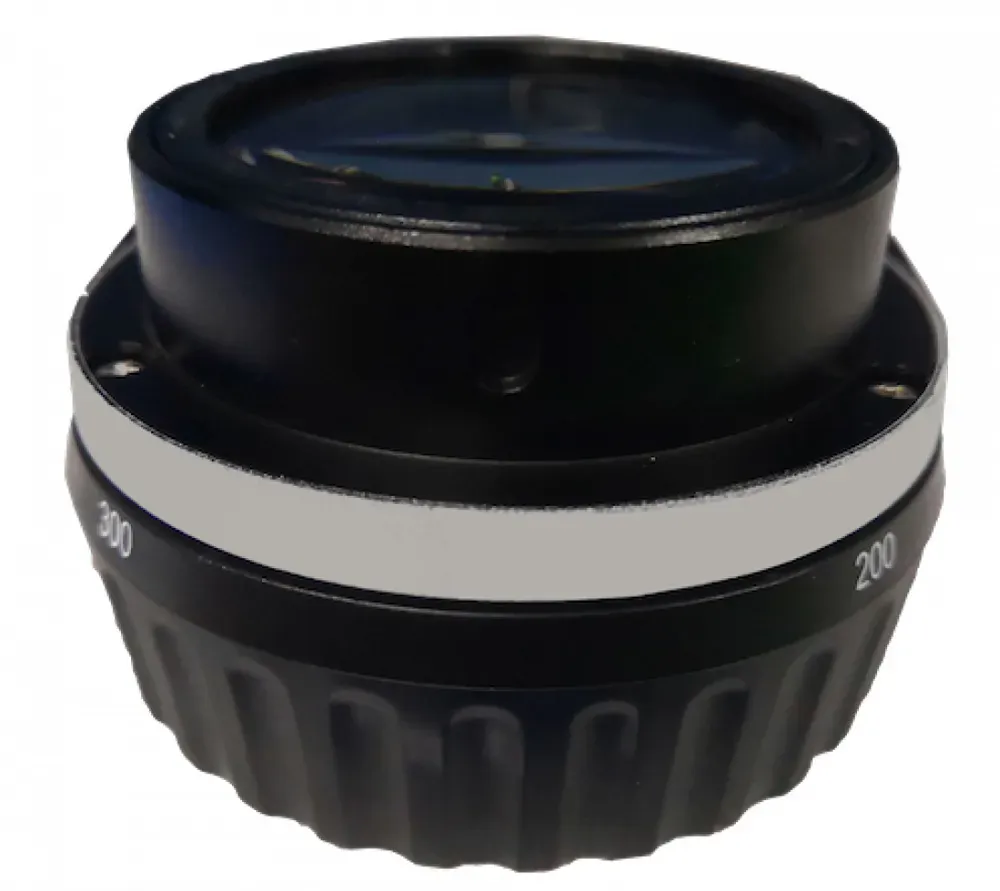

200–310 mm variable objective standard; 250–430 mm variable and F200/F250/F300/F400 fixed objectives available
LED illumination with five modes: three spot sizes plus green and orange filters
120° connecting arm; 30° binocular extender with angle rotation device
Entry-level dental operating microscope with 5-step magnification, apochromatic optics, LED illumination with five light modes, and fixed or variable objectives. Camera configurations use the ALL-CAM2 or ALL-CAM4.

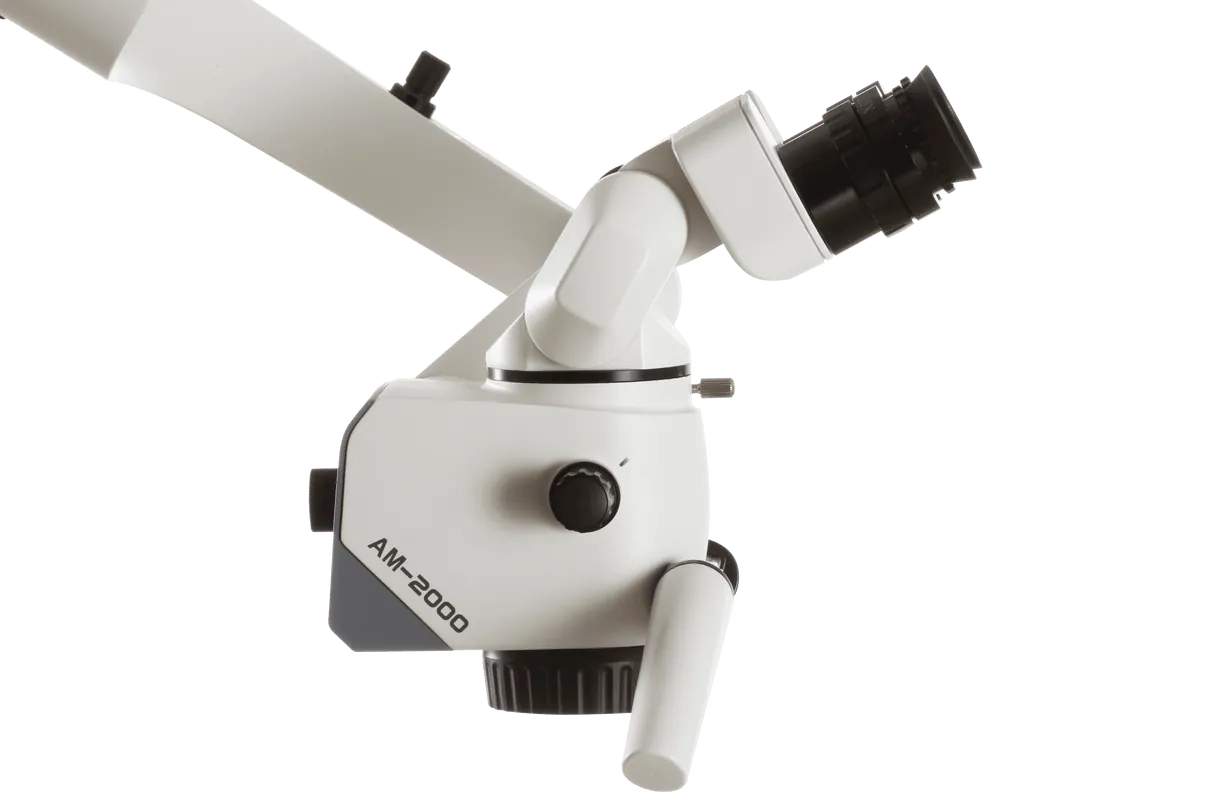

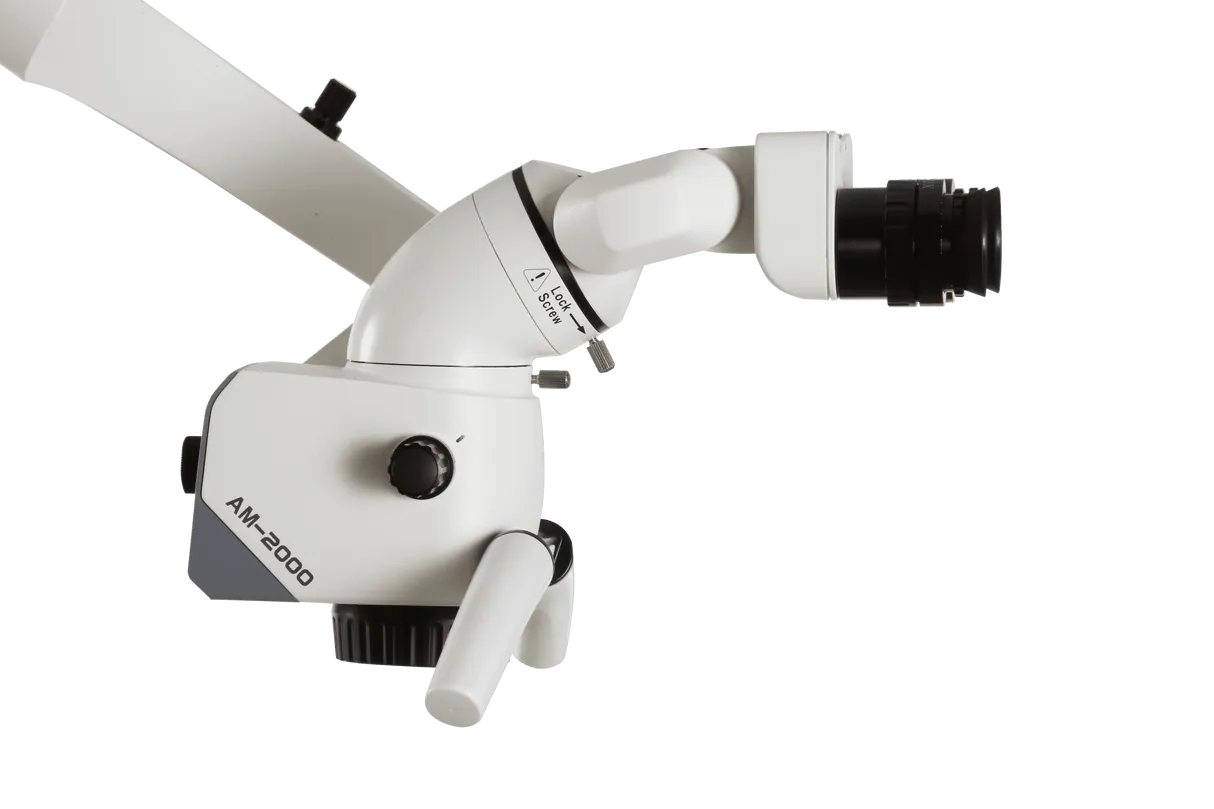

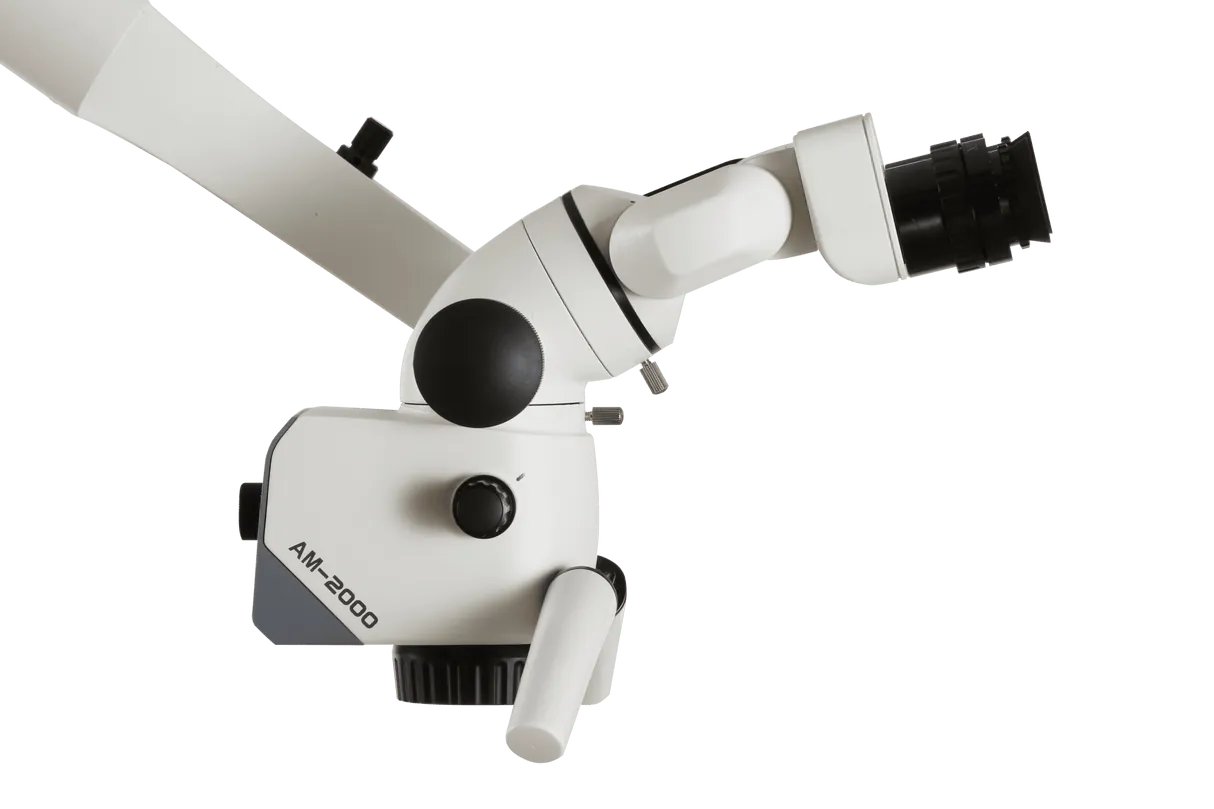

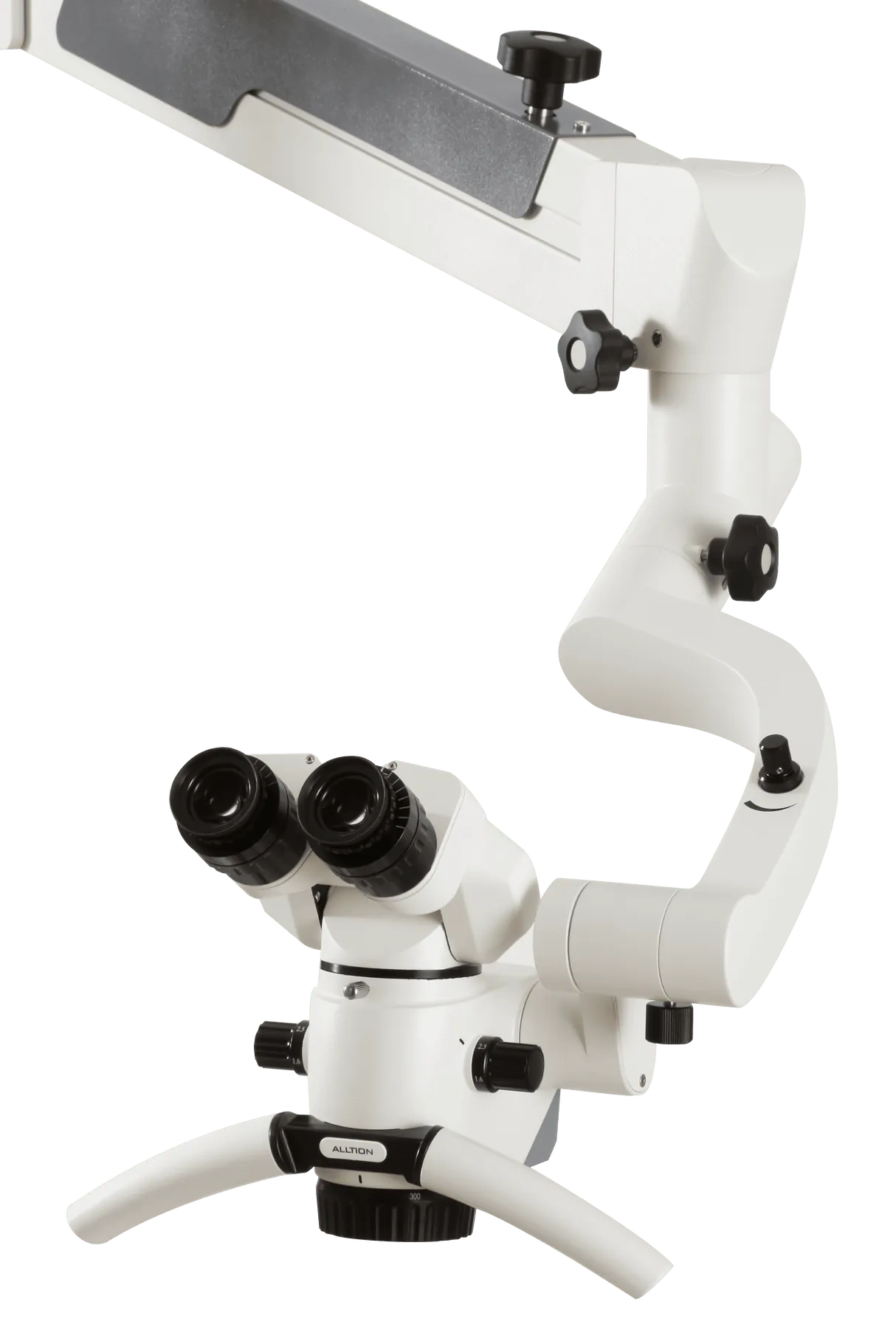

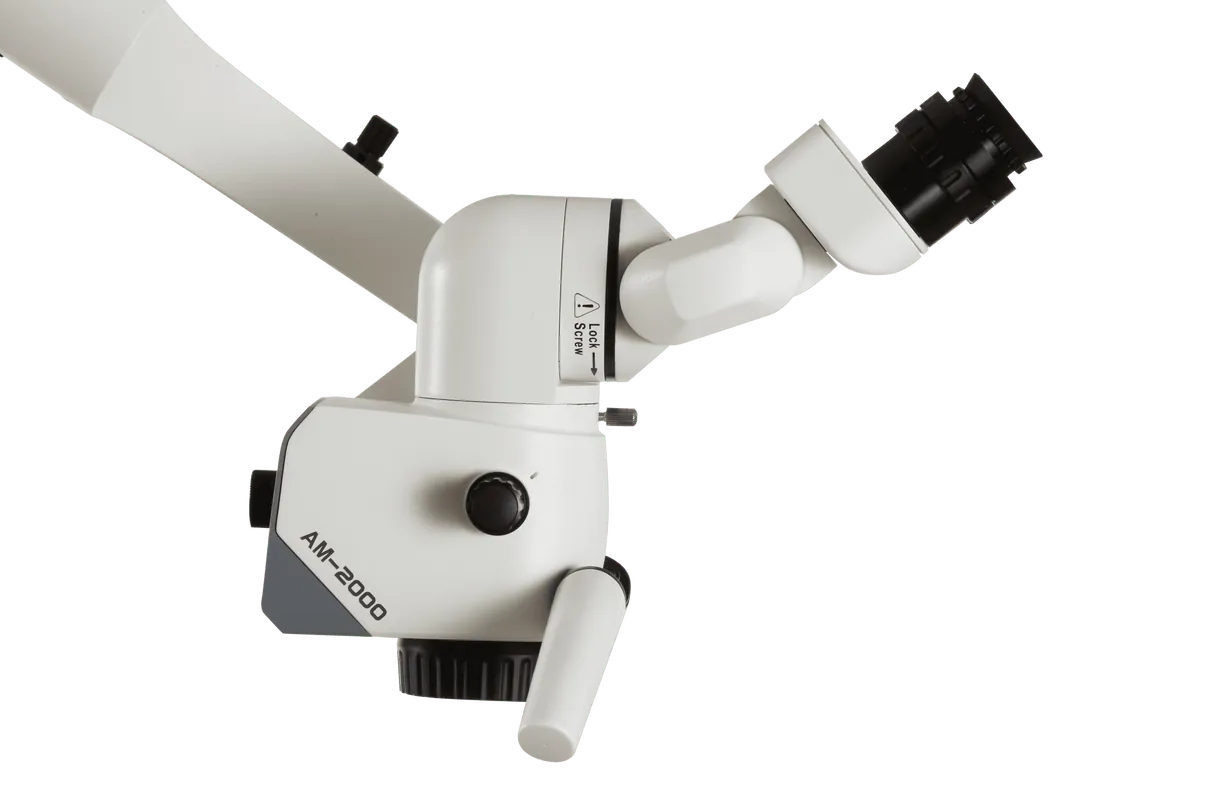

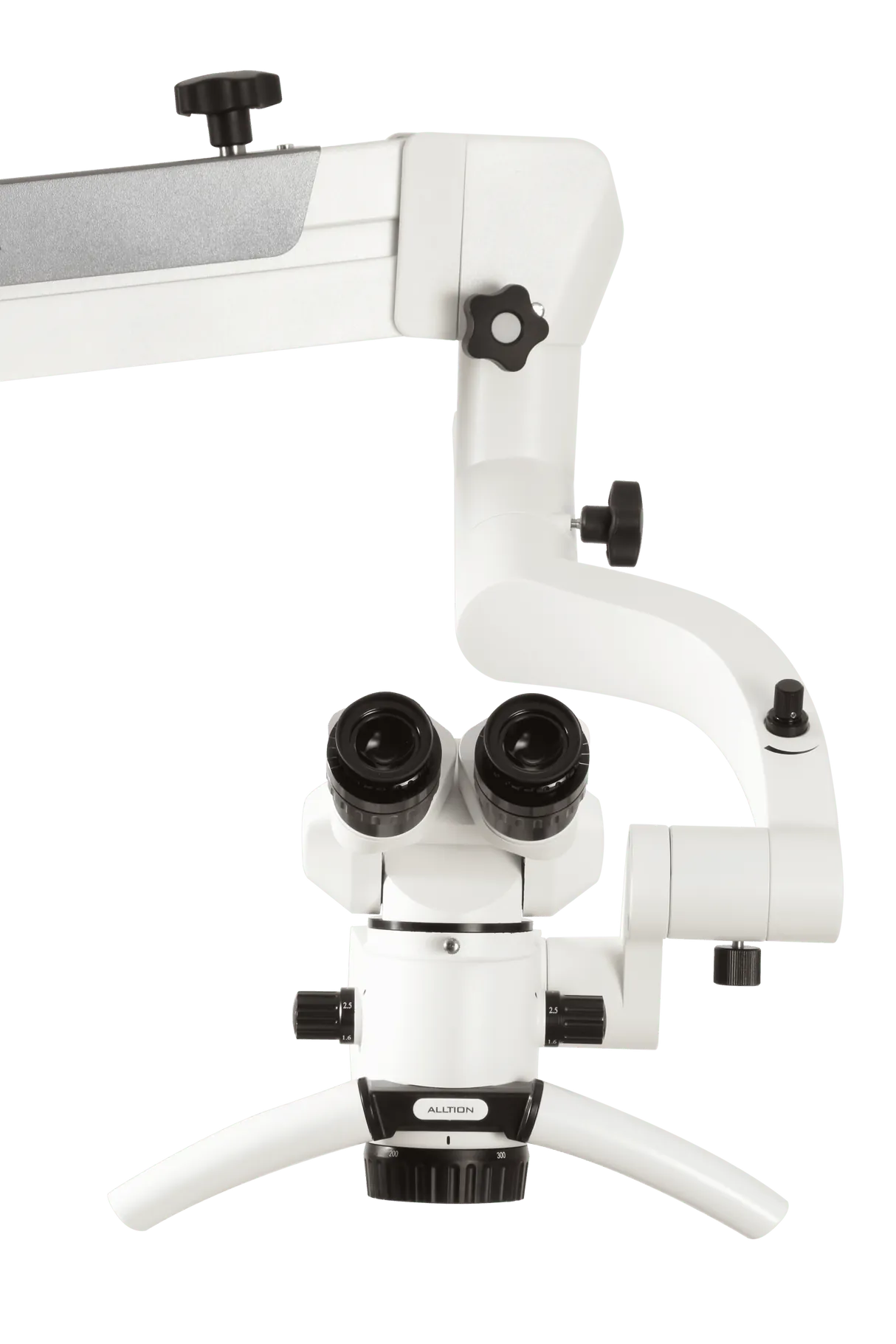

An articulated arm and adjustable viewing head for the dental setting.
Five magnification steps and a choice of binocular heads provide the core viewing arrangement. Choose a fixed or variable objective to suit the working distance, then match the eyepiece to your preferred field of view.
The AM-2000 and AM-2000V have no camera. The AM-2000VC adds the ALL-CAM2 and the AM-2000VC-4K adds the ALL-CAM4, while beam splitters and assistant scopes support documentation and shared viewing.
Magnification
5-step
With 250 mm objective
3.4–21X
Camera options
ALL-CAM2 / ALL-CAM4
Options & accessories
45° binocular extender with rotation device
3D assistant scope kit
Camcorder or CCD camera adapter kit
DSLR camera adapter kit
ALL-CAM2 or ALL-CAM4 camera with wireless foot pedal
Ceiling, low or high wall, fixed-floor or table mounting
Ask us which suit your setup.
Images may show optional accessories.
Full feature list
Manual 5-step magnification: 3.4X to 21X with the 250 mm objective.
200–310 mm variable objective standard; 250–430 mm variable and F200/F250/F300/F400 fixed objectives available.
LED illumination with five modes: three spot sizes plus green and orange filters.
120° connecting arm; 30° binocular extender with angle rotation device.
5V and 12V DC power interfaces on the microscope.
Optional ALL-CAM2 or ALL-CAM4 camera, beam splitter and assistant scopes.
Mobile floor stand, with fixed-floor, wall, ceiling, table and table-clamp mounts available.
Planning your setup
Check the model suffix, objective and camera against your order. The AM-2000 brochure covers several fixed-focus, variable-objective and camera configurations.
AM-2000 (fixed-focus, F250 mm, no camera) · AM-2000V (variable objective, no camera) · AM-2000VC (variable objective with ALL-CAM2) · AM-2000VC-4K (variable objective with ALL-CAM4)
Magnification
Manual 5-step: 3.4 / 5.3 / 8.5 / 13.6 / 21X with 250 mm objective
Binocular
Straight, 45° or 0–180° inclinable binocular with pupillary distance adjustment, depending on configuration
Interpupillary distance
50–75 mm
Eyepiece
12X/18B standard; 10X/21B optional; diopter ±6D
Optics
Apochromatic technology
Optical extender
30° binocular extender with angle rotation device standard; 45° or 90° extender with angle rotation device optional
Objective
200–310 mm variable objective standard; optional 250 mm objective or 250–430 mm variable objective; F200 / F300 / F400 fixed-focus objectives as accessories
Fine focus
12 mm fine-focusing range on fixed-focus objectives
Light & illumination
AM-2000 Series Light & illumination
Illumination
LED; maximum 50,000 lux with 300 mm objective; CRI ≥85%; 5500K; LED life ≥60,000 hours
Light modes
Five modes: maximum / medium / minimum spot; green and orange filters
