A dental surgical microscope with continuous 1:6.25 zoom, motorised focusing, an integrated FORA rotating assembly, electromagnetic arm locking and built-in 4K imaging. Standard, Medium and High configurations offer different zoom and illumination combinations.
Continuous zoom
1:6.25
Motorised objective
198–455 mm
Real-time output
4K / 60 FPS
Highlights
Continuous 1:6.25 zoom with a 0.4X–2.5X zoom factor and 1.7X–19X total magnification
Manual zoom in Standard and Medium configurations; motorised zoom in High
0–210° inclinable binocular head with interpupillary adjustment
Motorised 198–455 mm variable objective; 200–610 mm auxiliary objective, availability depends on configuration
A dental surgical microscope with continuous 1:6.25 zoom, motorised focusing, an integrated FORA rotating assembly, electromagnetic arm locking and built-in 4K imaging. Standard, Medium and High configurations offer different zoom and illumination combinations.

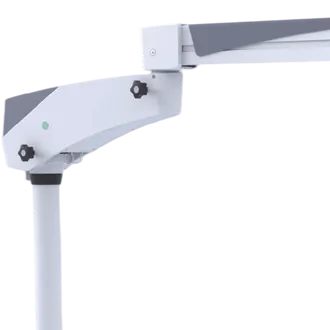

The AM-7400 on its mobile floor stand, with an electromagnetic balance-arm lock.
The 0–210° inclinable binocular, integrated FORA assembly and pendulum movement provide several ways to position the optical head. The motorised objective adjusts the working distance from 198 to 455 mm, while the handgrip releases the electromagnetic arm lock.
Standard and Medium configurations use continuous manual zoom; High adds motorised zoom. Medium and High include white light with 405 fluorescent light. Built-in imaging provides 3840 × 2160 real-time output at 60 FPS, with capture available through the handgrip, foot pedal or touchscreen.
Continuous zoom
1:6.25
Motorised objective
198–455 mm
Real-time output
4K / 60 FPS
Images may show optional accessories.
Full feature list
Continuous 1:6.25 zoom with a 0.4X–2.5X zoom factor and 1.7X–19X total magnification.
Manual zoom in Standard and Medium configurations; motorised zoom in High.
0–210° inclinable binocular head with interpupillary adjustment.
Motorised 198–455 mm variable objective; 200–610 mm auxiliary objective, availability depends on configuration.
Integrated FORA rotating assembly with ±25° horizontal and ±60° vertical pendulum movement.
Electromagnetic arm lock with one-click release from the handgrip.
Motorised orange and green filter switching, adjustable brightness and continuously adjustable light-spot size.
Standard depth-of-field enhancement; optional anti-glare alternative.
Integrated touchscreen for zoom, focus, photo/video capture and lighting adjustment.
Built-in 3840 × 2160 imaging with 60 FPS real-time output, USB storage and Wi-Fi connectivity.
Mobile floor stand, with fixed-floor, wall and ceiling mounting options.
Options include voice control and a 4K built-in camera with auto-focus.
Planning your setup
Record whether the unit is Standard, Medium or High. Confirm zoom, illumination, eyepieces, objective and any additional accessories against your quotation.
The leaflet covers Standard, Medium and High configurations and optional accessories. Confirm the exact supplied setup and current operating instructions with our team.
