Entry-level 3-step operating microscope for ENT, ophthalmology, stomatology, gynaecology and general surgery, with multiple working-distance objectives, LED illumination and a pantograph-style arm.
Magnification
3-step
Total magnification
2.4–12X
Pantograph arm
1500 mm
Highlights
Three-step magnification with a total range of 2.4X–12X
Top-mounted 10W LED with 20,000-hour lifespan and 50,000 lux object illumination
Green and blue filters selected by a lever
F=200 or 250 mm objectives; F=300 or 400 mm optional
Entry-level 3-step operating microscope for ENT, ophthalmology, stomatology, gynaecology and general surgery, with multiple working-distance objectives, LED illumination and a pantograph-style arm.

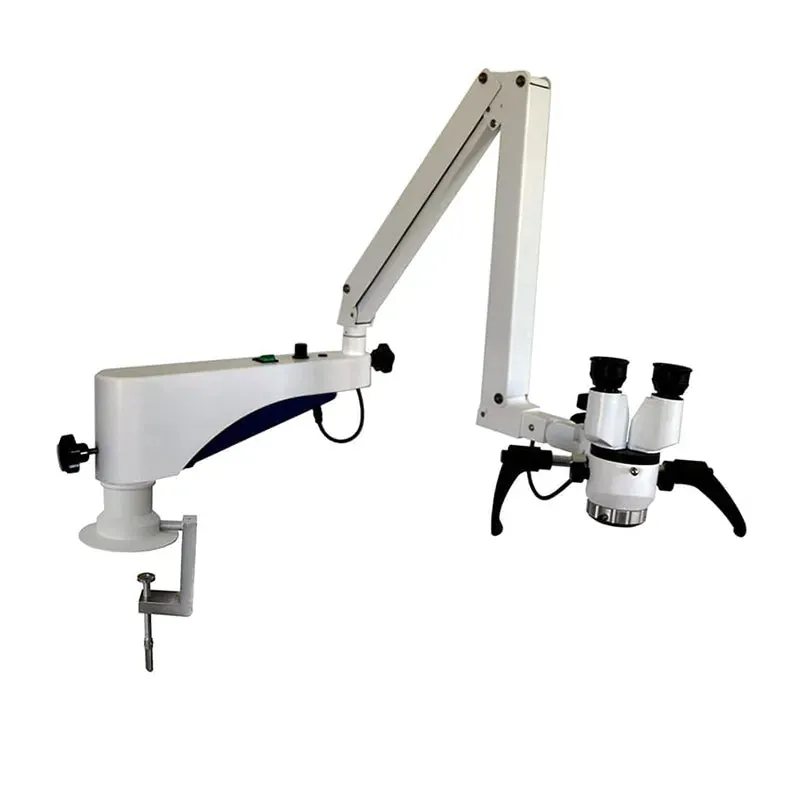

An articulated pantograph arm brings the microscope into position.

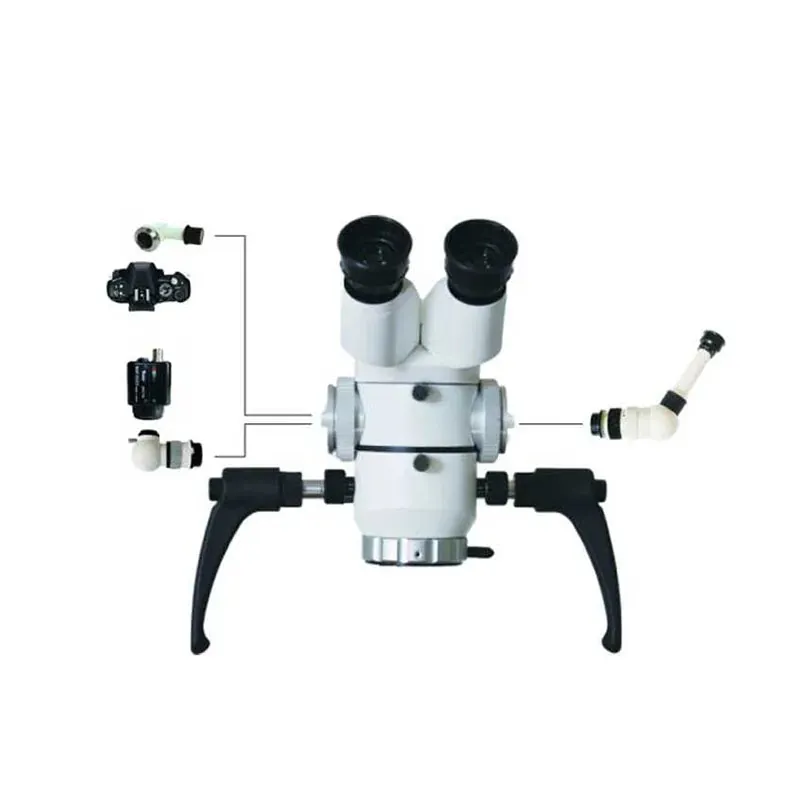

The straight binocular system has three magnification steps, with F=200 and 250 mm objectives and F=300 and 400 mm objectives as options. Select the objective during configuration to match the intended setup.
A two-part 1500 mm pantograph arm on a two-part column and five-star base positions the head over the working area.
Magnification
3-step
Total magnification
2.4–12X
Pantograph arm
1500 mm
Options & accessories
YSX-102 version with a 45° inclined binocular
300 mm or 400 mm objective
Ask us which suit your setup.
Images may show optional accessories.
Full feature list
Three-step magnification with a total range of 2.4X–12X.
Top-mounted 10W LED with 20,000-hour lifespan and 50,000 lux object illumination.
Green and blue filters selected by a lever.
F=200 or 250 mm objectives; F=300 or 400 mm optional.
1500 mm pantograph arm.
Straight binocular head; the related YSX-102 is the 45° version.
Planning your setup
Check the microscope model, binocular, objective and stand supplied. The YSX family includes different heads and arm arrangements, so keep the YSX-101 instructions with this unit.
A model-specific brochure or operating manual is not available to download here yet. Use the product information and start guide, or request the document for your configuration.
