AM-2000 Series ENT Microscope

The ENT configuration of the AM-2000 platform, with 5-step magnification, LED illumination with five light modes, a 120° connecting arm and optional ALL-CAM2 or ALL-CAM4 camera configurations.

Magnification: 5-step
Standard variable objective: 200–310 mm
Connecting arm: 120°

Highlights

Manual 5-step magnification
Apochromatic optics; 12X/18B eyepieces with ±6D diopter adjustment
200–310 mm variable objective standard; 250 mm and 250–430 mm variable objectives optional
Orange and green illumination filters and three spot sizes

Full description

Available options

AM-2000, AM-2000V, AM-2000VC (ALL-CAM2) or AM-2000VC-4K (ALL-CAM4).
10X/21B eyepiece (12X/18B standard).
Straight, 45° or 0–180° inclinable binocular head.
250 mm objective or 250–430 mm variable objective (200–310 mm variable standard).
45° or 90° binocular extender with angle rotation device.

Ask us which option suits your practice.

Speak with our team

View spec sheet PDF Watch the product videos (2)

Delivery & support

Ask us about availability and delivery times.

Local support in Australia. Advice, demonstrations and service. Contact us

Specialties: ENT
Product code: ALMAM2000ENT

Product Overview

Description

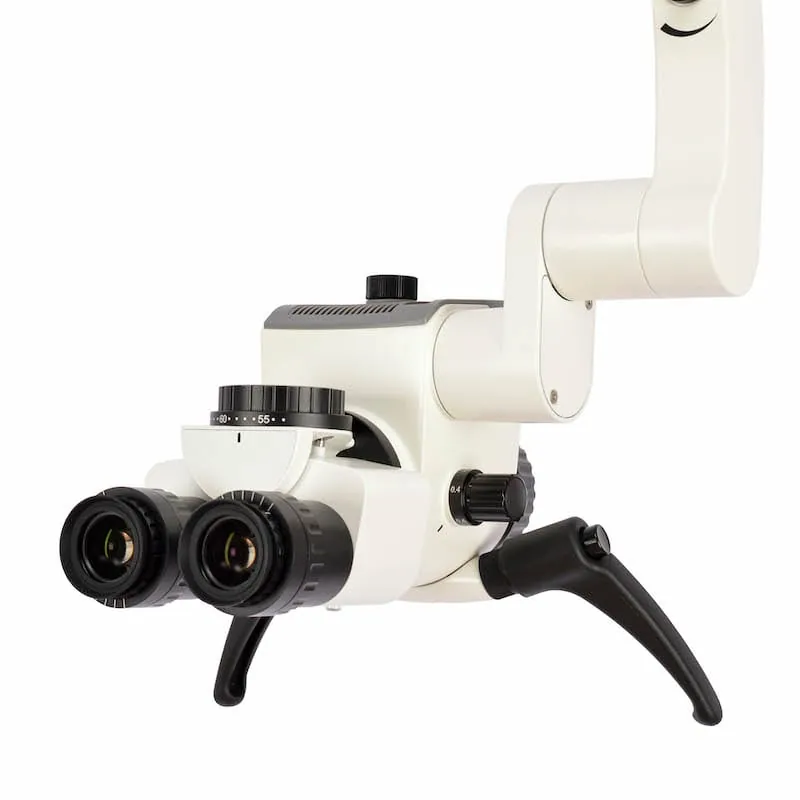

AM-2000 ENT microscope binocular head, objective and handles

A closer view for ENT examinations.

The ENT configuration of the AM-2000 platform, with 5-step magnification, LED illumination with five light modes, a 120° connecting arm and optional ALL-CAM2 or ALL-CAM4 camera configurations.

Five-step magnification in a compact optical head.

Key Features

AM-2000 ENT microscope projecting a white illumination spot — White-light illumination
The microscope positioned to show its illumination spot.

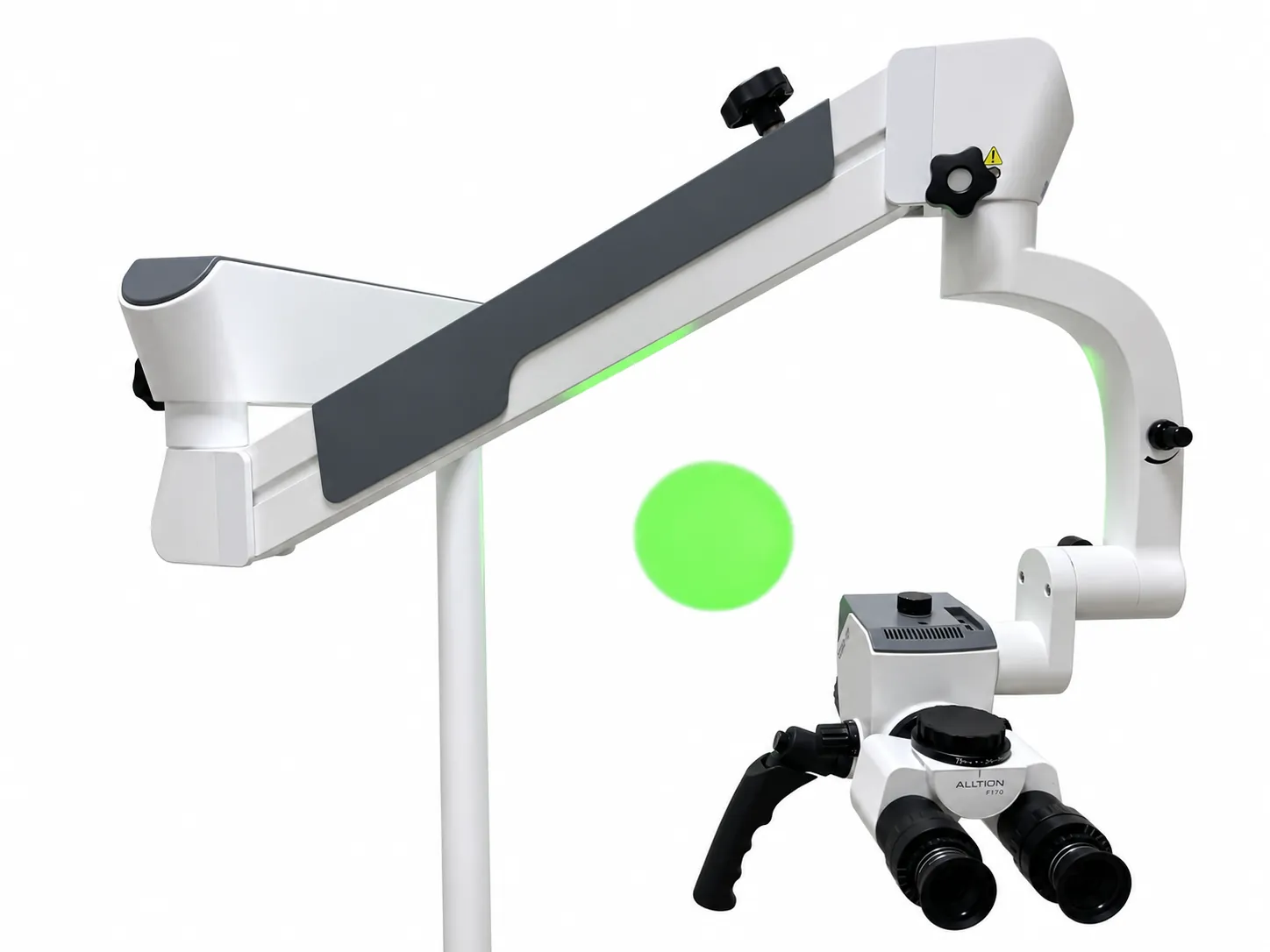

AM-2000 ENT microscope projecting a green filtered illumination spot — Green filter
A filtered view from the same optical platform.

Full AM-2000 ENT microscope on a mobile floor stand — The complete system
A mobile base and suspension arm for room positioning.

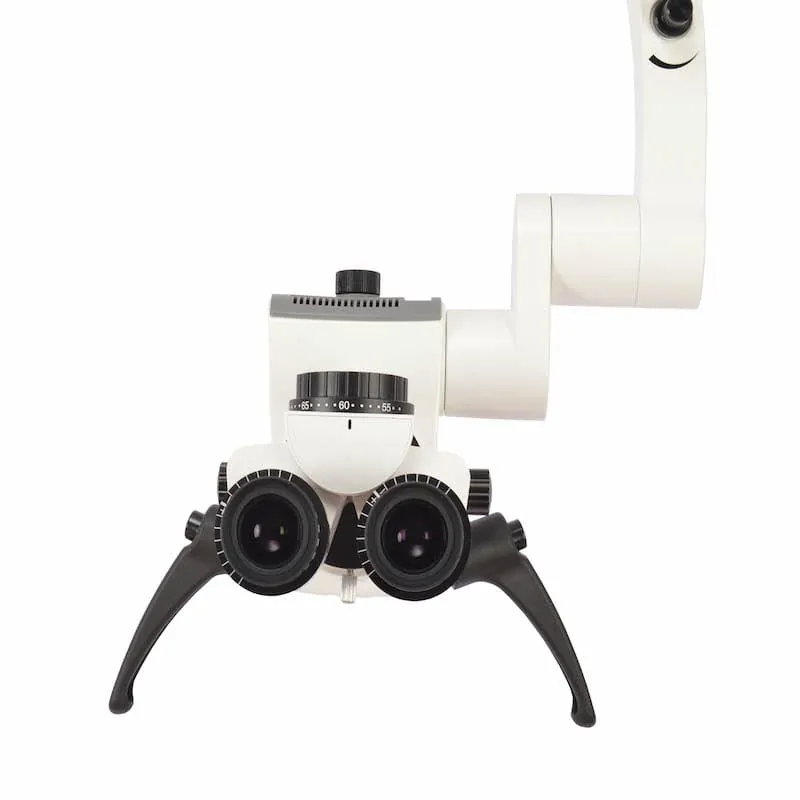

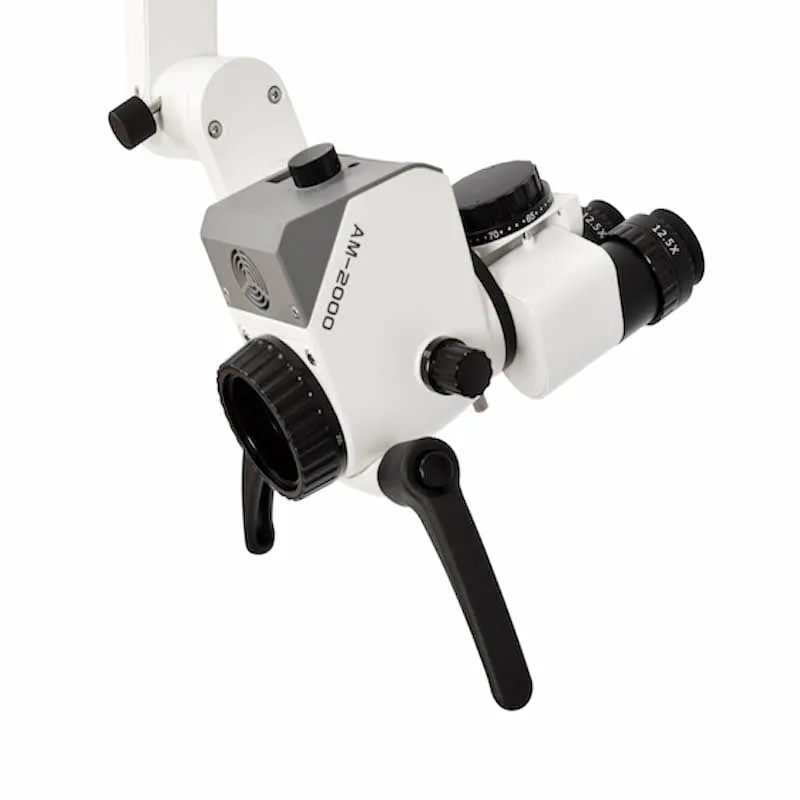

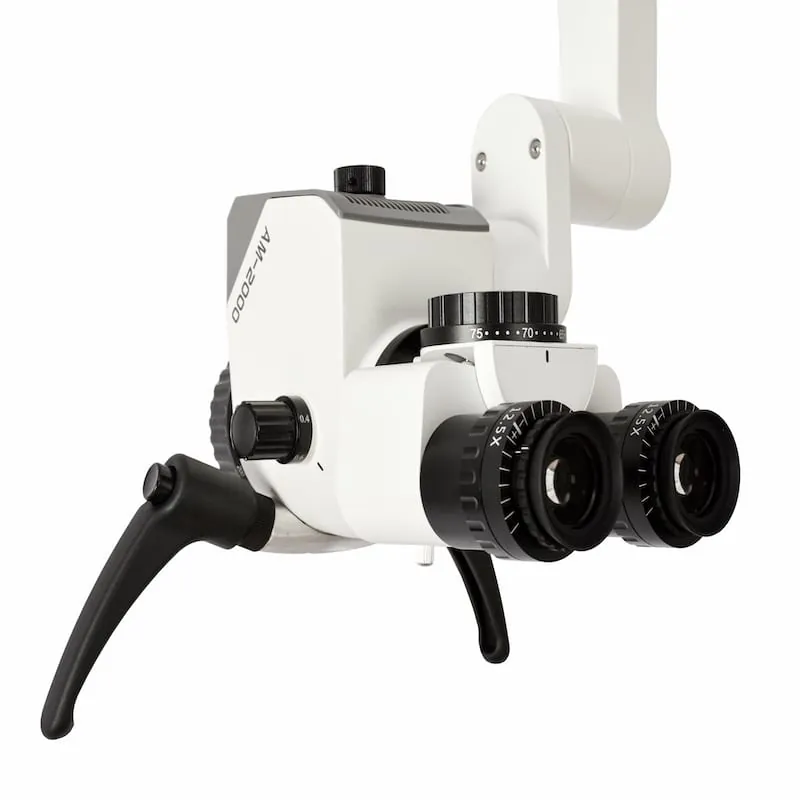

AM-2000 ENT optical head with positioning handles — Positioning handles
Handles either side of the optical head.

A compact system for the ENT room.

The AM-2000 ENT pairs a mobile floor stand with a 120° connecting arm. A choice of binocular heads and extenders allows the optical arrangement to be selected for the room and operator.

The standard system is an optical microscope without an integrated camera. Add the external ALL-CAM2 where documentation is required, with the correct beam splitter and interface confirmed for your configuration.

Magnification: 5-step
Standard variable objective: 200–310 mm
Connecting arm: 120°

Images may show optional accessories.

Full feature list

Manual 5-step magnification.
Apochromatic optics; 12X/18B eyepieces with ±6D diopter adjustment.
200–310 mm variable objective standard; 250 mm and 250–430 mm variable objectives optional.
Orange and green illumination filters and three spot sizes.
Optional ALL-CAM2 or ALL-CAM4 camera.
Mobile floor stand, with fixed-floor, wall, ceiling and table mounts available.

Planning your setup

Record the AM-2000 model suffix, objective, binocular, mounting and imaging accessories. The series brochure and videos show configurations that may differ from your ENT setup.

Prepare for your handover

Discuss AM-2000 Series

Specifications

View spec sheet PDF

Optics & observation

AM-2000 Series Optics & observation
Models	AM-2000 (fixed-focus, F250 mm, no camera) · AM-2000V (variable objective, no camera) · AM-2000VC (variable objective with ALL-CAM2) · AM-2000VC-4K (variable objective with ALL-CAM4)
Magnification	Manual 5-step: 3.4 / 5.3 / 8.5 / 13.6 / 21X with 250 mm objective
Binocular	Straight, 45° or 0–180° inclinable binocular with pupillary distance adjustment, depending on configuration
Interpupillary distance	50–75 mm
Eyepiece	12X/18B standard; 10X/21B optional; diopter ±6D
Optics	Apochromatic technology
Optical extender	30° binocular extender with angle rotation device standard; 45° or 90° extender with angle rotation device optional
Objective	200–310 mm variable objective standard; optional 250 mm objective or 250–430 mm variable objective; F200 / F300 / F400 fixed-focus objectives as accessories
Fine focus	12 mm fine-focusing range on fixed-focus objectives

Light & illumination

AM-2000 Series Light & illumination
Illumination	LED; maximum 50,000 lux with 300 mm objective; CRI ≥85%; 5500K; LED life ≥60,000 hours
Light modes	Five modes: maximum / medium / minimum spot; green and orange filters

Imaging & documentation

AM-2000 Series Imaging & documentation
Camera	Optional ALL-CAM2 (Full HD) or ALL-CAM4 (4K)

Positioning & installation

AM-2000 Series Positioning & installation
Power	Input AC100–240V, 50/60Hz; output DC12V/3A; 25–60VA
Auxiliary outputs	5V and 12V DC power interfaces on the microscope
Connecting arm	120° connecting arm; 950 mm extension arm optional
Support	Mobile floor stand standard; fixed floor stand, ceiling, low- or high-position wall, table and table-clamp mounts optional

Specifications may vary by option or configuration. Confirm the supplied specifications and compatibility before ordering.
