Advanced dental microscope with a C-type connecting arm, the FORA pendulum system, a variable 198–455 mm objective, 0–180° binocular, high-output LED illumination and integrated 4K imaging.
Variable objective
198–455 mm
Pendulum
±23°
Built-in camera
4K
Highlights
C-type arm designed to increase dental operating space
FORA system combines a 90° binocular extender and ±23° pendulum movement to support upright posture
Advanced dental microscope with a C-type connecting arm, the FORA pendulum system, a variable 198–455 mm objective, 0–180° binocular, high-output LED illumination and integrated 4K imaging.
The C-type arm and inclinable binocular support positioning around the patient.

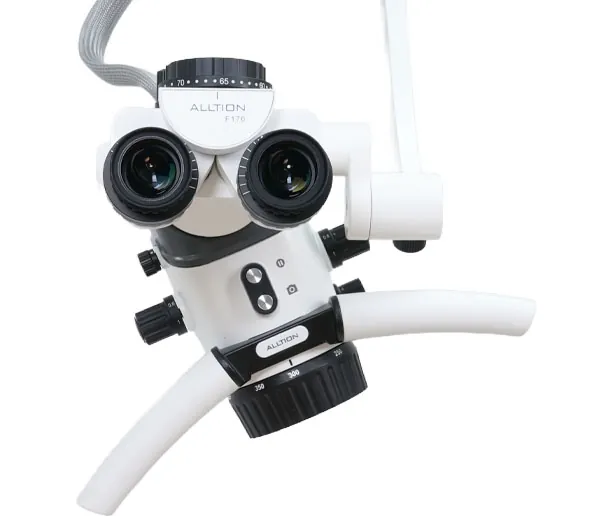

The C-type arm and FORA assembly combine a 90° binocular extender with ±23° pendulum movement. Together with the inclinable binocular, they provide several ways to set the viewing position around the dental chair.
Single-hand controls bring freeze, photo and video functions alongside objective adjustment. The built-in camera outputs 3840 × 2160, with 1080P video capture and 8M still images listed separately in the specifications.
Variable objective
198–455 mm
Pendulum
±23°
Built-in camera
4K
Options & accessories
2D assistant scope kit with beam splitter
3D assistant scope kit with beam splitter
Mobile phone adapter kit
DSLR camera adapter kit
Beam splitter, 2:8 or 5:5
Ask us which suit your setup.
Images may show optional accessories.
Full feature list
C-type arm designed to increase dental operating space.
FORA system combines a 90° binocular extender and ±23° pendulum movement to support upright posture.
198–455 mm variable objective.

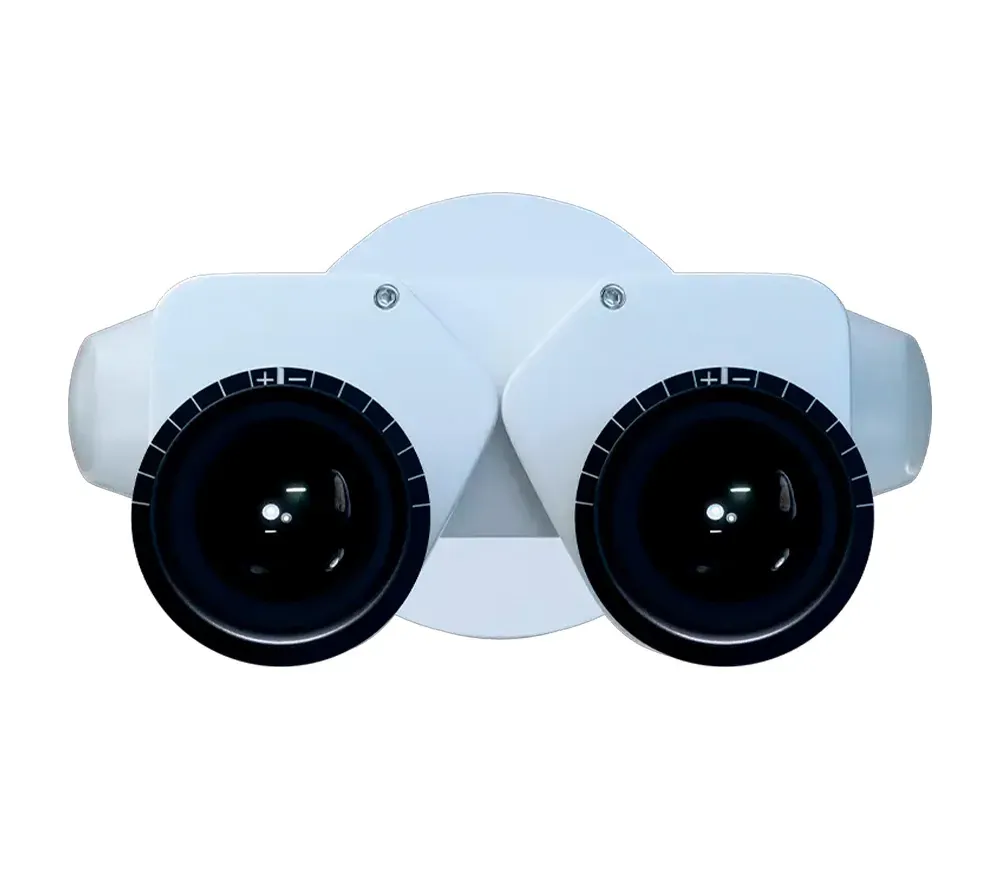

0–180° inclined binocular (f=170 mm).
Single-hand controls for freeze, photo, video and objective adjustment.
More than 80,000 lux, CRI 85% and 5500K, with orange and green filters and three spot sizes.
Optical pod rotation of 150° left and 180° right.
Built-in 4K camera for observation, documentation and playback.
Planning your setup
Confirm the binocular, variable objective, FORA assembly, stand and integrated camera supplied with your AM-2000 PLUS. The standard AM-2000 uses a different configuration.
