Surgical microscope for dental, ENT and general surgery, combining a 6-step optical system, a 198–455 mm variable objective, optional FORA ergonomics, LED illumination up to 80,000 lux and a built-in 4K camera.
Manual magnification
6-step
Variable objective
198–455 mm
With 250 mm objective
80,000 lux
Highlights
Premium apochromatic optics
6-step magnification (1.4X–22.8X) and 198–455 mm variable objective
Built-in 4K camera with Wi-Fi image transmission
Up to 80,000 lux with a 250 mm objective; three spot sizes and green/yellow filters
Surgical microscope for dental, ENT and general surgery, combining a 6-step optical system, a 198–455 mm variable objective, optional FORA ergonomics, LED illumination up to 80,000 lux and a built-in 4K camera.
Six-step magnification and a 198–455 mm variable objective.

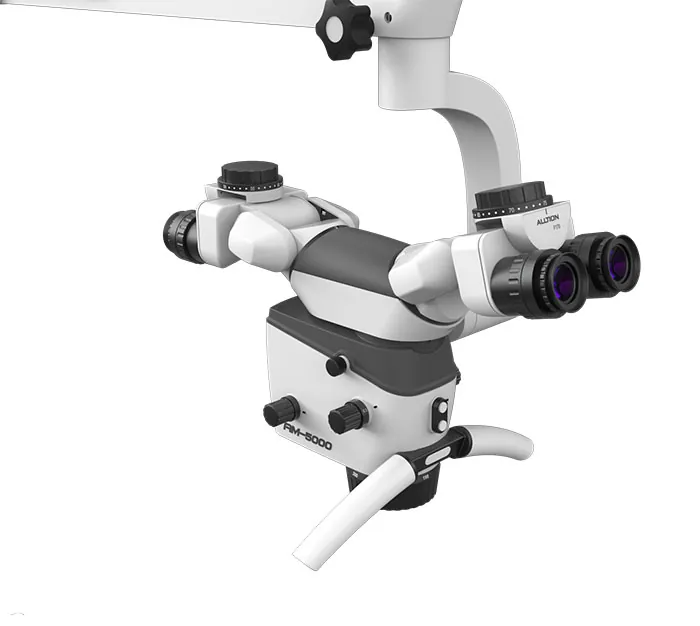

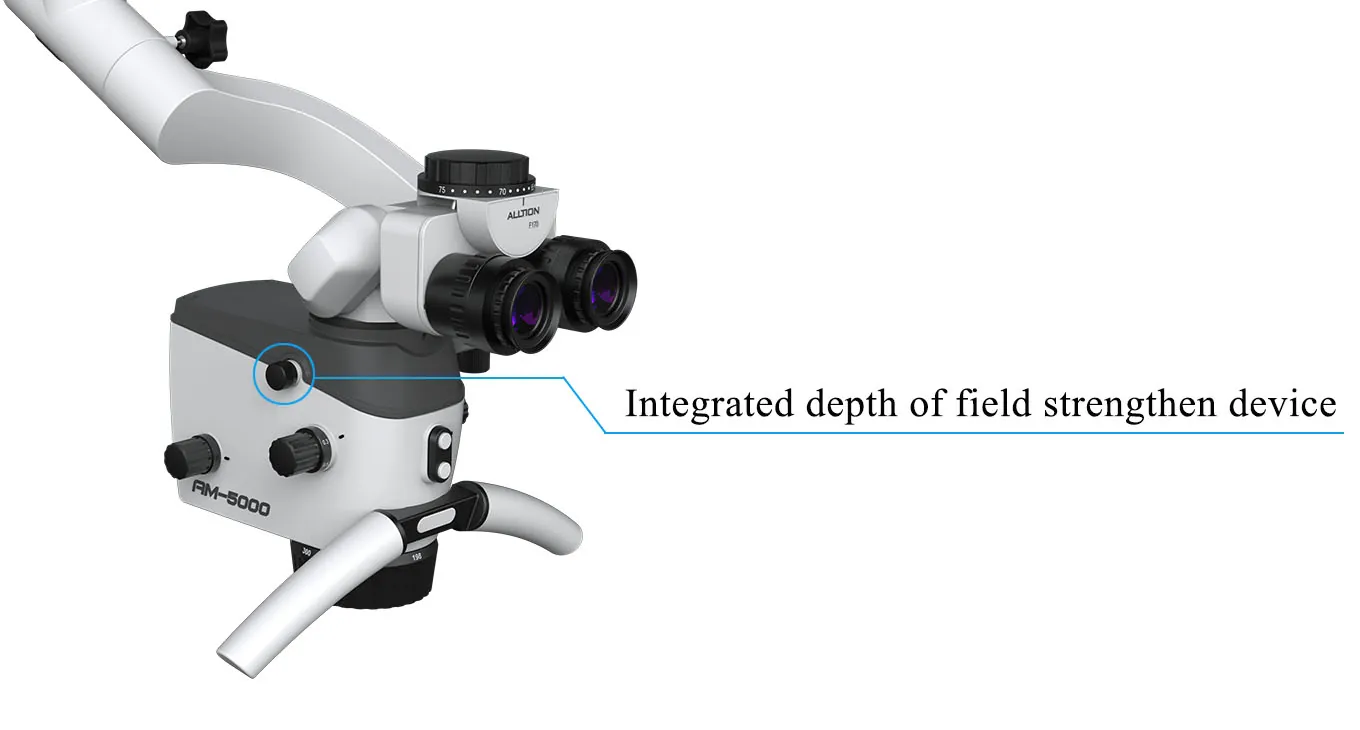

The variable objective covers 198–455 mm, while six magnification steps change the scale of the view. An inclinable binocular and optional FORA extender and pendulum assembly give you more ways to position the optical head.

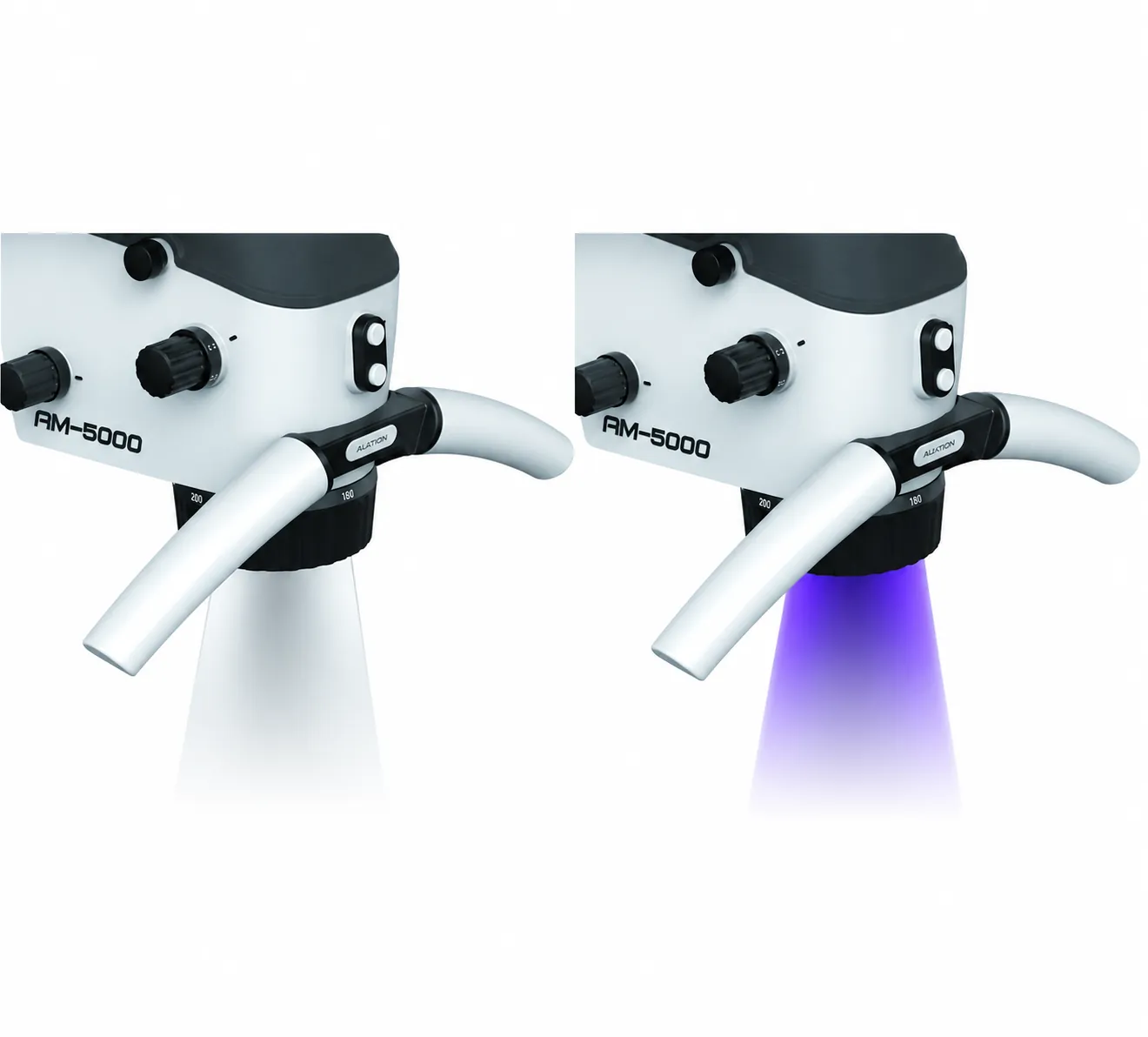

Three spot sizes and green and yellow filters provide different illumination settings, with a dual white light system available as an option. The built-in 4K camera handles documentation; ALL-CAM2 and ALL-CAM4 are also listed as accessories.
Manual magnification
6-step
Variable objective
198–455 mm
With 250 mm objective
80,000 lux
Options & accessories

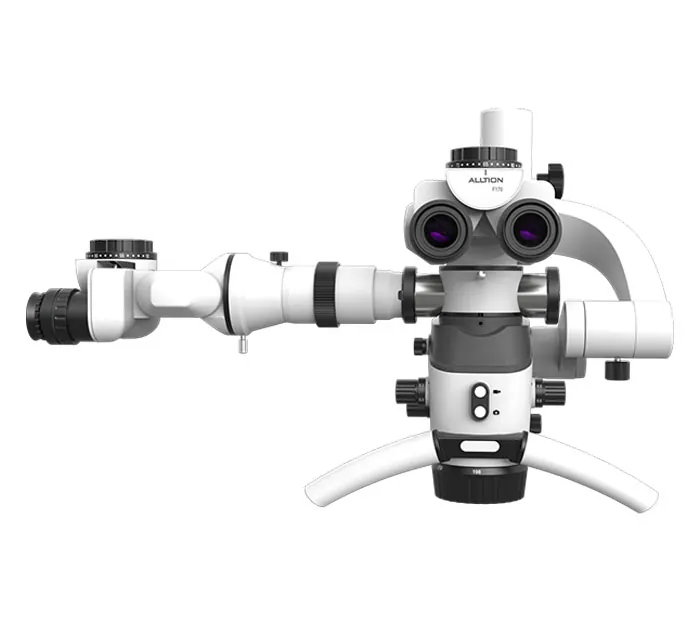

2D or 3D assistant scope kit

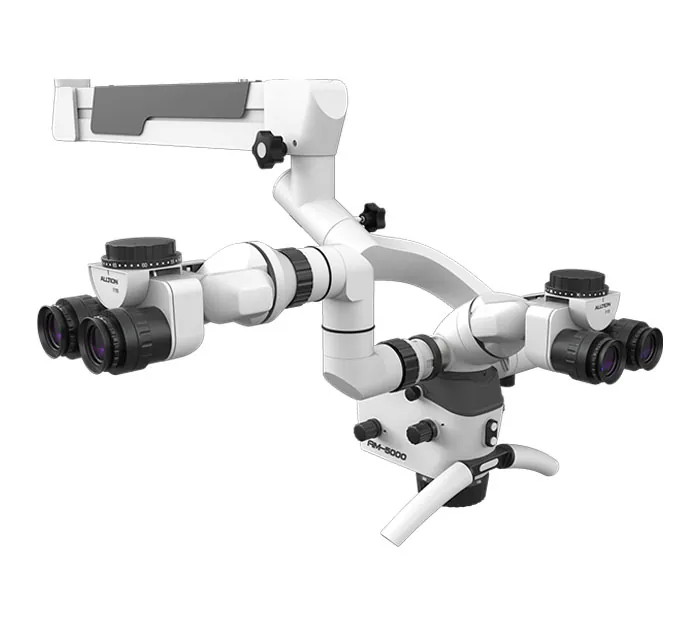

Face-to-face stereo bridge
30°, 45° or 90° binocular extender with rotation device
Monitor and monitor bracket
HDMI capture card
Wireless foot pedal
DSLR or mobile phone adapter kit
Laser protection filter
Extra magnifier
Objective splash guard and sterilisation cover
Ask us which suit your setup.
Images may show optional accessories.
Full feature list
Premium apochromatic optics.
6-step magnification (1.4X–22.8X) and 198–455 mm variable objective.
Built-in 4K camera with Wi-Fi image transmission.
Up to 80,000 lux with a 250 mm objective; three spot sizes and green/yellow filters.
Optional FORA with 90° extender, pendulum rotation device and beam splitter.
Optional dual white light illumination system.

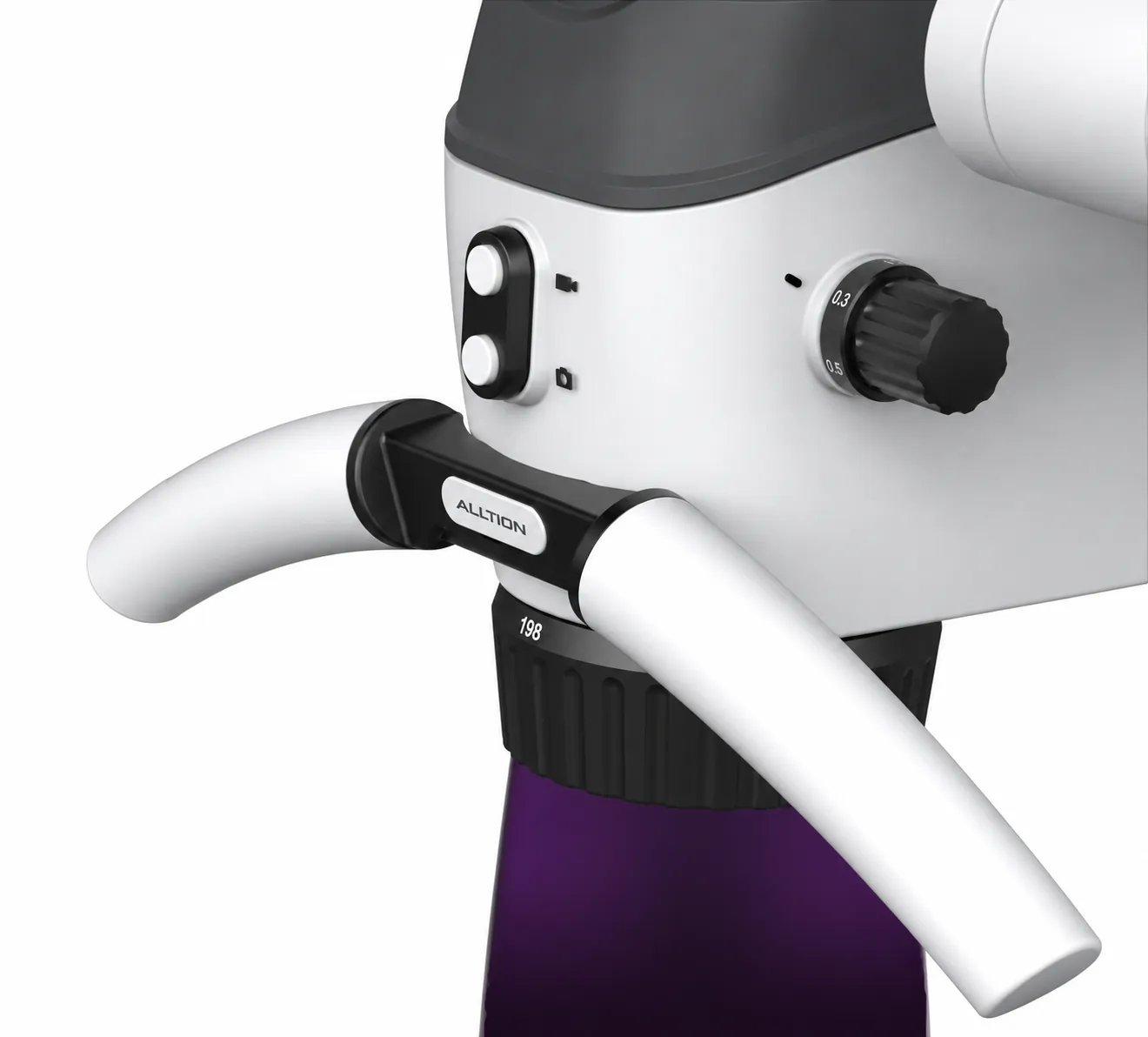

Single-handed controls and broad optional-accessory support.
Planning your setup
Record the AM-5000 configuration, objective, binocular, camera and any FORA or assistant-scope options. Confirm the supplied setup against the manufacturer brochure.
Floor stand standard; fixed floor stand, floor stand with 950 mm pantograph arm, ceiling, low- or high-position wall, table and table-clamp mounts optional
Specifications may vary by option or configuration. Confirm the supplied specifications and compatibility before ordering.
