AlltionSKU: ALMAM6000DEN
AM-6000 continuous-zoom surgical and dental microscope with 23 mm eyepieces, a built-in beam splitter, an optional integrated full-function camera and broad stand geometry.
AM-6000 continuous-zoom surgical and dental microscope with 23 mm eyepieces, a built-in beam splitter, an optional integrated full-function camera and broad stand geometry.

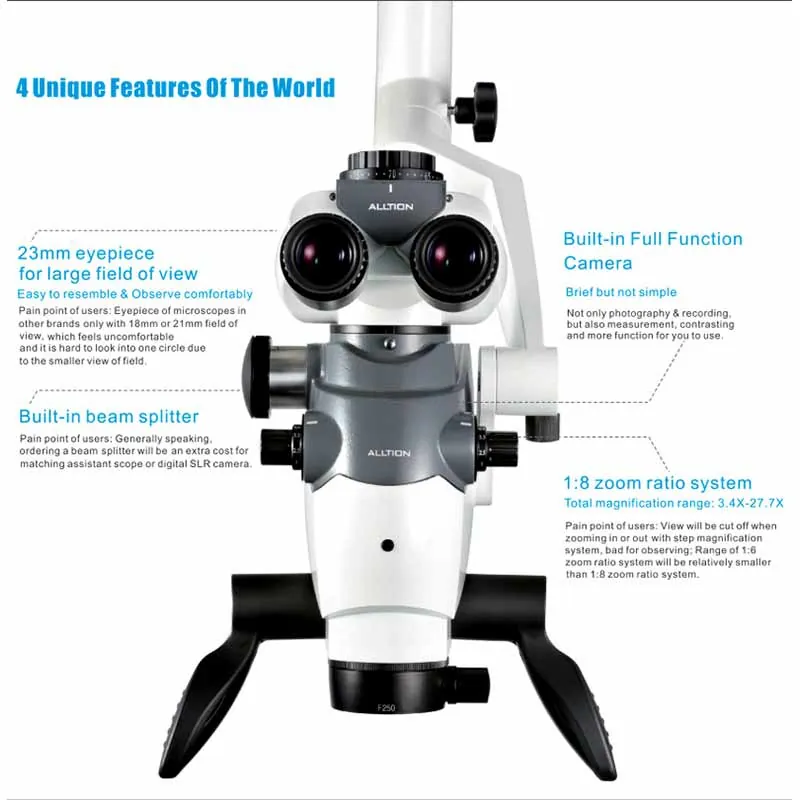

Continuous 1:8 zoom with a 23 mm eyepiece field.
The AM-6000 uses a manual 1:8 zoom system rather than discrete magnification steps. A 23 mm eyepiece field and adjustable binocular support the optical viewing arrangement.
A built-in beam splitter provides the imaging connection. With the optional full-function camera, the system supports still and video capture, playback and comparison of images alongside the live view.
Images may show optional accessories.
Identify whether the AM-6000 uses a mobile stand, fixed floor support, wall mount or ceiling mount. Check the chosen binocular, objective and camera accessories.
| Models | AM-6000 (250 mm objective, no camera) · AM-6000C (250 mm objective, built-in camera) · AM-6000V (200–300 mm variable objective) · AM-6000VC (variable objective, built-in camera) |
|---|---|
| Eyepiece | 10X; 23 mm field |
| Zoom | Manual 1:8 zoom ratio |
| Total magnification | 3.4X–27.7X |
| Binocular | 0–180° adjustable binocular; IPD 50–75 mm |
| Objective | 250 mm (300 / 400 mm optional); variable objective, working distance 200–300 mm |
| Beam splitter | Built in |
| Adjustment | Friction adjustment knob |
| Illumination | ≥60,000 lux; CRI ≥85%; 5700K; LED life 60,000 hours or more |
|---|---|
| Light modes | Five: minimum / medium / maximum spot; orange and green filters |
| Camera (C / VC models) | Built-in full-function camera: 1/2 inch Sony CMOS; HD 1080P 60 FPS (16:9); built-in 32GB SD plus external USB flash disk; JPG / MP4; external Wi-Fi |
|---|---|
| Camera functions | Freeze, photo, video, automatic exposure, white balance, playback and cross curve; image effects; flip, zoom, AOI and image comparison |
| Software compatibility | Windows XP / 7 / 8 / 10; Android and iOS |
| Power | 100–240V, 50/60Hz; 35–60VA |
|---|---|

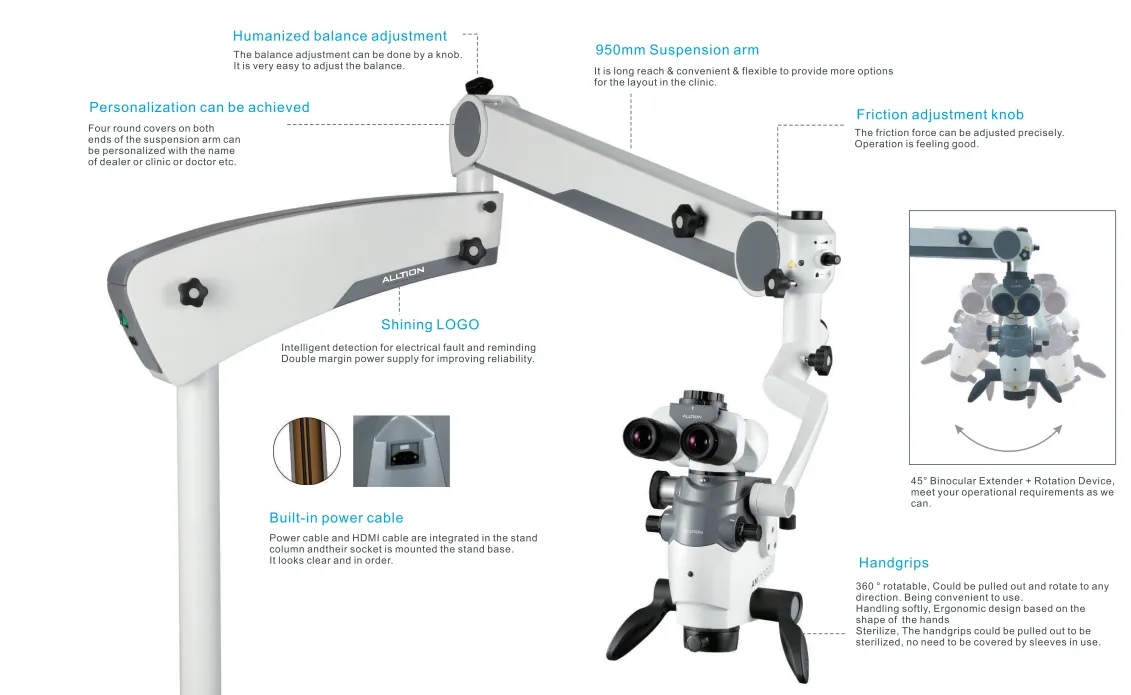

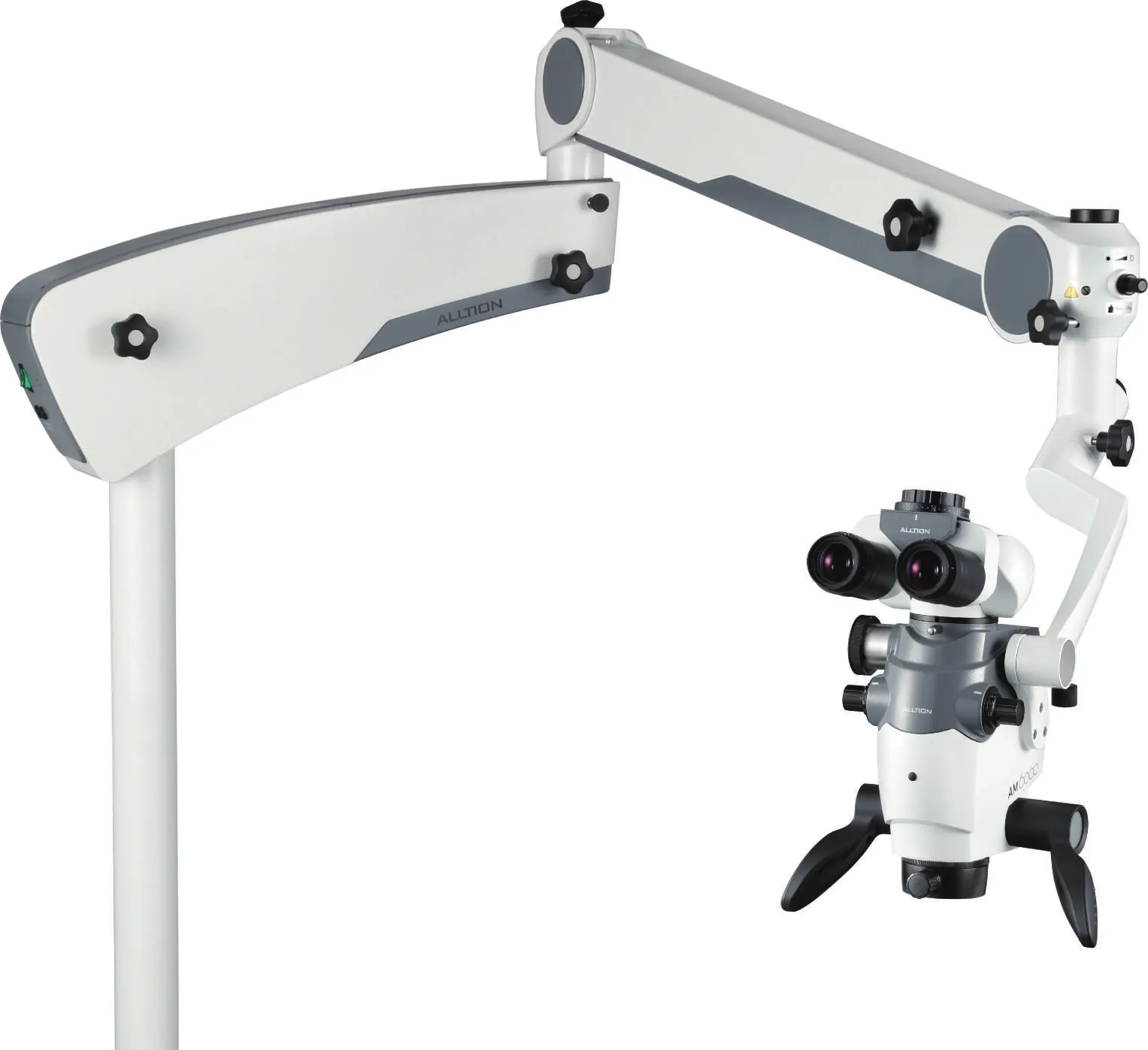

| Geometry | Maximum working distance 1700 mm; working height 750–1550 mm; stand base 640 × 640 mm; 950 mm suspension arm |
| Handgrips | 360° rotatable; can be pulled out for sterilisation |
| Construction | Carrier-arm cover in environmentally friendly PC; internal parts mostly 6061 aluminium alloy |
| Mounting | Floor stand; fixed floor stand, ceiling and low- or high-position wall mounts optional |
Specifications may vary by option or configuration. Confirm the supplied specifications and compatibility before ordering.
AM-6000 installation · Alltion
Configuration shown may differ from your supplied unit.
Open original video ↗ Arrange a demonstrationStart Here
Prepare for installation, learn the controls and organise the documentation for your AM-6000 Series.
Brochures describe a range of configurations. Ask for the operating manual and setup instructions matched to your delivered unit.
