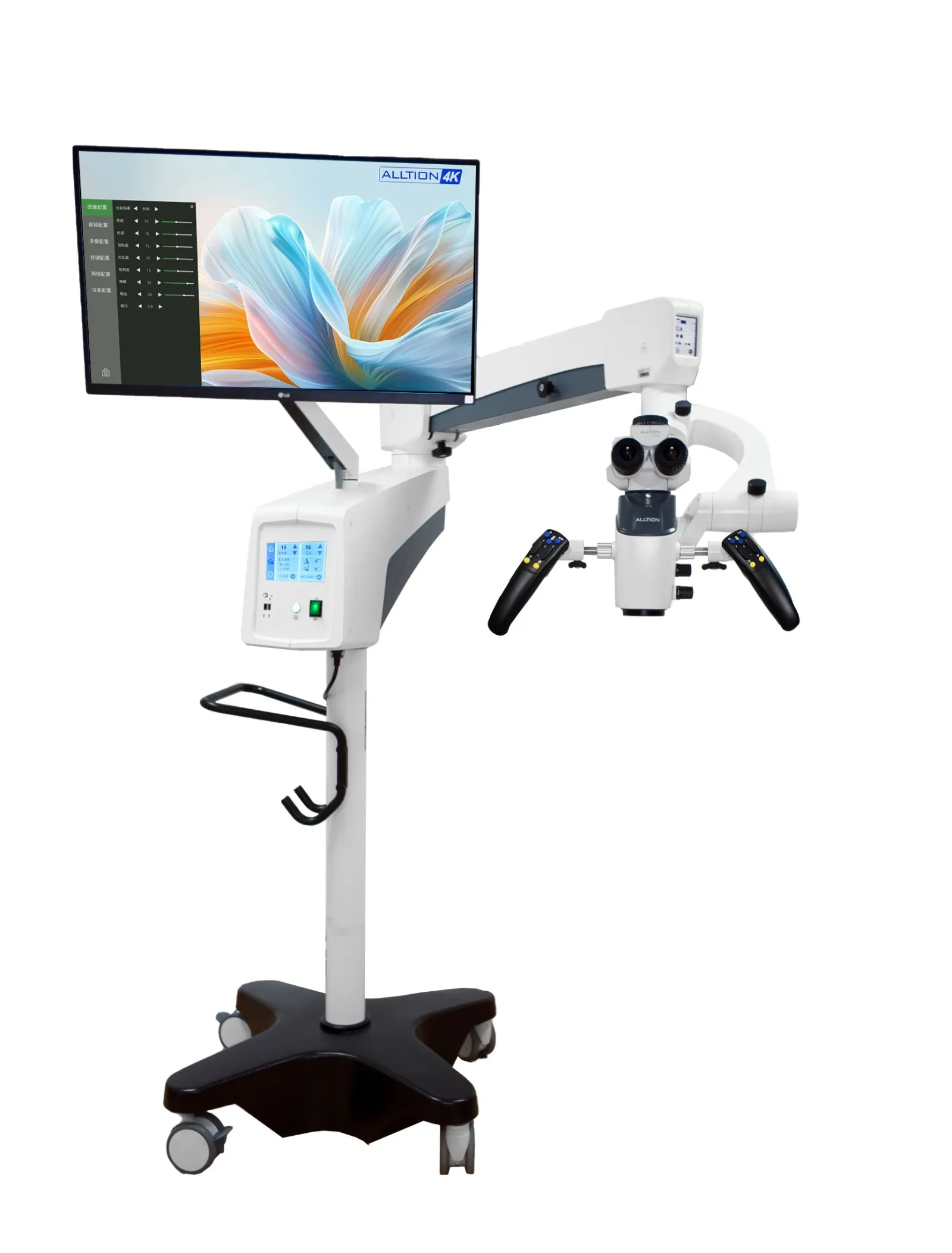

Motorised dental operating microscope with continuous zoom, a motorised variable objective, electromagnetic locking, multi-function handgrips, a touch screen, illumination up to 80,000 lux and integrated 4K documentation.
Motorised zoom
1:6.25
Variable objective
198–455 mm
Maximum illumination
80,000 lux
Highlights
Motorised continuous 1:6.25 zoom
0–180° binocular head with interpupillary adjustment
Motorised 198–455 mm variable objective

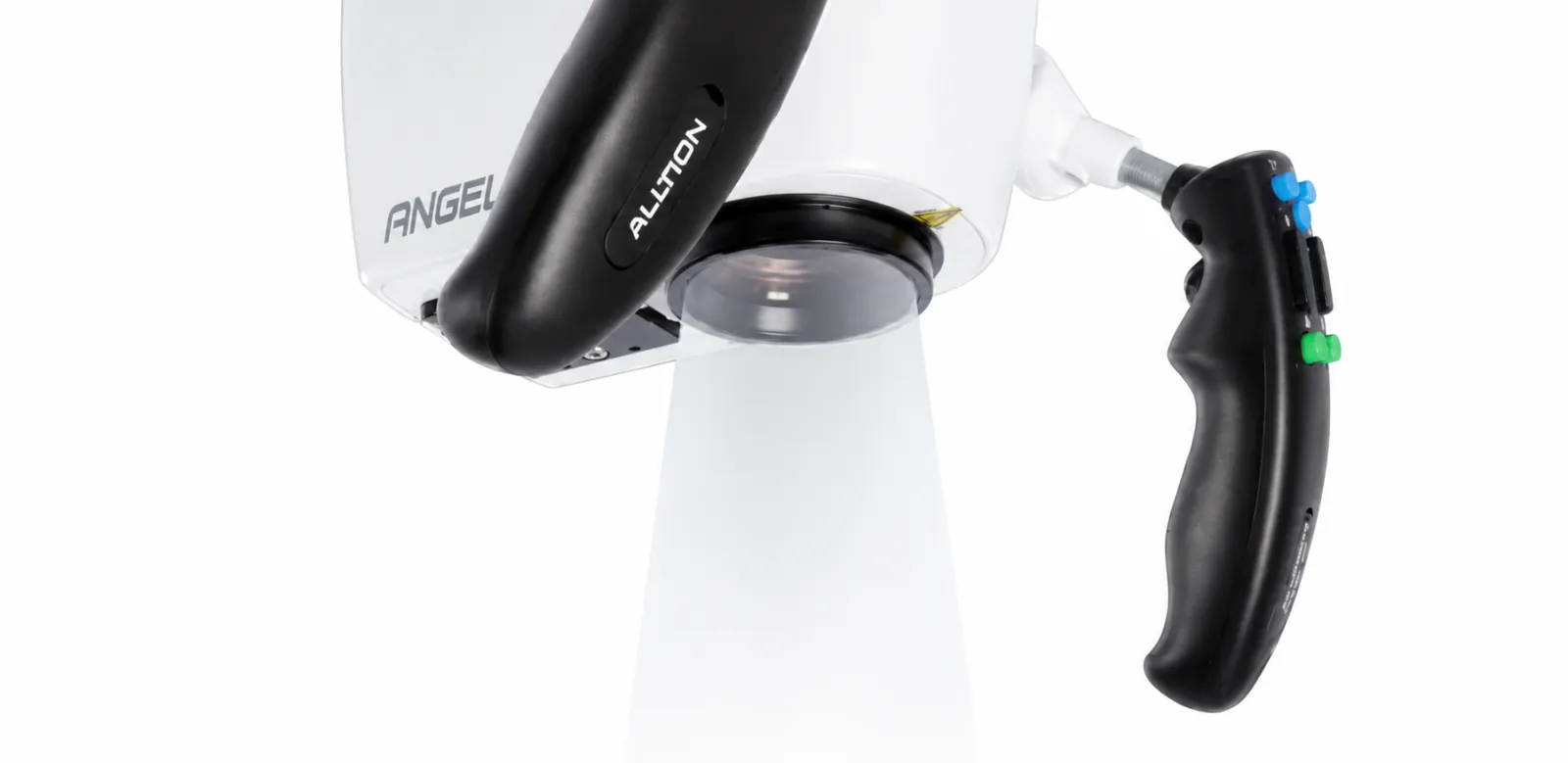

Dual-lamp LED illumination up to 80,000 lux, CRI ≥85% and 5500K, with LED life of more than 50,000 hours
Motorised dental operating microscope with continuous zoom, a motorised variable objective, electromagnetic locking, multi-function handgrips, a touch screen, illumination up to 80,000 lux and integrated 4K documentation.
Position the microscope and share the view with your patient.
Motorised focus and continuous zoom put optical adjustment on the multi-function handgrips. Electromagnetic locking lets the operator release and reposition the arm using the fitted controls.
The integrated 4K camera supports documentation alongside optical observation. Optional 3D imaging and an assistant scope extend the viewing arrangement; confirm the exact package with your supplier.
Motorised zoom
1:6.25
Variable objective
198–455 mm
Maximum illumination
80,000 lux
Options & accessories
Straight or 45° binocular head
Beam splitter, 2:8 or 5:5
30° or 90° binocular extender with rotation device
30° extender with beam splitter and rotation device
3D assistant scope
Sony, Canon or Nikon camera adapter
Mobile phone adapter
Laser protection filter
FS-3 wireless foot pedal for the built-in camera
Ask us which suit your setup.
Images may show optional accessories.
Full feature list
Motorised continuous 1:6.25 zoom.
0–180° binocular head with interpupillary adjustment.
Motorised 198–455 mm variable objective.
Dual-lamp LED illumination up to 80,000 lux, CRI ≥85% and 5500K, with LED life of more than 50,000 hours.
Fluorescence mode and depth-of-field strengthening.
Four- or six-joint electromagnetic lock.
Multi-function handgrips for focus, zoom, illumination, capture and unlocking.
Integrated 4K camera, with optional 3D imaging and auto focus.
Wireless foot pedal for photo and video.
Touch screen behind the first horizontal arm, and a display showing magnification, working distance, dimming and focus/zoom speed.
Optional 2D/3D assistant scope.
Reach of 1729 mm.
Planning your setup
Record the serial number, objective, camera, stand and supplied accessories. Confirm the electromagnetic-lock configuration and any optional assistant scope with your supplier.
