Motorised surgical microscope with continuous zoom, a 198–455 mm motorised-focus objective, 90,000 lux LED illumination, a 1508 mm arm, electromagnetic locking and built-in 4K imaging. Configure the viewing arrangement with optional assistant optics, extended working distance and 3D imaging.
Motorised zoom
1:6.25
Maximum illumination
90,000 lux
Arm length
1508 mm
Highlights
Motorised 1:6.25 continuous zoom
198–455 mm motorised variable objective
Four- or six-joint electromagnetic-lock configurations
Handgrip focus, zoom, brightness and capture controls
Motorised surgical microscope with continuous zoom, a 198–455 mm motorised-focus objective, 90,000 lux LED illumination, a 1508 mm arm, electromagnetic locking and built-in 4K imaging. Configure the viewing arrangement with optional assistant optics, extended working distance and 3D imaging.
Motorised focus and zoom, handgrip controls and a built-in 4K camera.

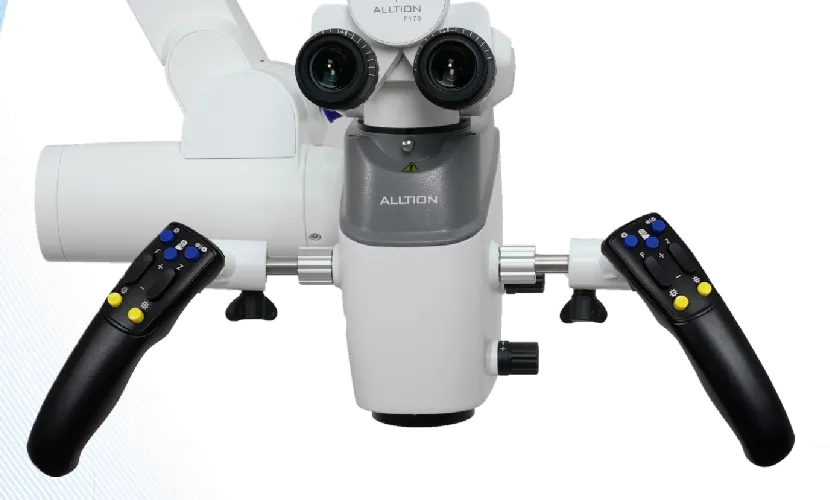

The handgrips combine motorised focus, zoom, brightness and image capture with an unlock control. The brochure describes four- and six-joint electromagnetic-lock configurations and wireless foot control.
The built-in 4K camera can be paired with an optional 3D solution. Assistant tubes, a stereo bridge, beam splitter and an additional objective extending the working-distance range are listed as optional accessories.
Motorised zoom
1:6.25
Maximum illumination
90,000 lux
Arm length
1508 mm
Options & accessories
Straight or fixed 45° binocular tube
Beam splitter and bridge beam
Three-direction assistant tube
Additional objective for working distances up to 610 mm
Extra 1.6X magnifier
FS-4 foot pedal
Spare light
3D camera solution
One-touch autofocus
Ask us which suit your setup.
Images may show optional accessories.
Full feature list
Motorised 1:6.25 continuous zoom.
198–455 mm motorised variable objective.
Four- or six-joint electromagnetic-lock configurations.
Handgrip focus, zoom, brightness and capture controls.
Built-in 4K camera; optional 3D solution.

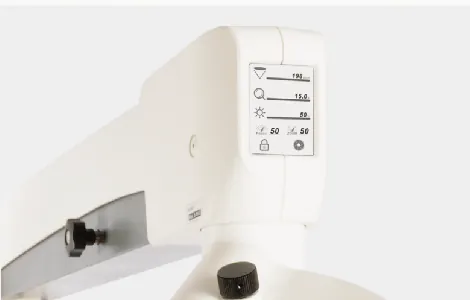

Wireless foot control and a front information display.
Two LED lights: 90,000 lux, CRI ≥90% and 5500K, with three light-spot sizes.
1508 mm arm length for a wide working range.
Planning your setup
Record the stand, binocular, objective and imaging options. The brochure describes different lock configurations; confirm the one delivered on your unit.
