Alltion

ANGEL 60 Dental & Surgical Microscope

A motorised dental surgical microscope with continuous apochromatic 1:6.25 zoom, electric focusing, a 0–210° inclinable binocular head, electromagnetic braking and a built-in 4K 60 FPS camera. Multifunction handgrips bring optical adjustment, imaging and arm release together.

Motorised zoom: 1:6.25
Motorised objective: 198–455 mm
Built-in camera: 4K / 60 FPS

Highlights

Motorised apochromatic continuous 1:6.25 zoom with 1.7X–19X total magnification
Motorised 198–455 mm variable objective; optional auxiliary objective extends working distance to 200–610 mm
0–210° inclinable binocular head with interpupillary-distance adjustment
Multifunction handgrips for photo/video, freeze, dimming, zoom, focus and one-touch electromagnetic-brake release

Full description

Available options

Angel 60, Angel 60F (fluorescence) or Angel 60PF (fluorescence, FORA pendulum, continuously adjustable spot).
Optical accessories: 10X/21B eyepieces or optional binocular extenders.
Auxiliary objective extending working distance to 200–610 mm.
Optional fluorescence; anti-glare or depth-of-field enhancement (select one).
Optional 3D camera or AR imaging system.
Fixed-floor, low/high wall or ceiling mounting (mobile floor stand standard).
Optional FS-3/FS-4 wireless foot pedal or one-touch autofocus.
Optional three-joint assistant scope.

Ask us which option suits your practice.

Speak with our team

View spec sheet PDF

Delivery & support

Ask us about availability and delivery times.

Local support in Australia. Advice, demonstrations and service. Contact us

Specialties: Dental · Surgical

Product Overview

Description

ANGEL 60 optical head and multifunction handgrips

Motorised control at the optical head.

Focus, zoom, imaging and brake release from the multifunction handgrips.

Key Features

Side view of the ANGEL 60 optical head and arm — Adjust your viewing position
A 0–210° inclinable binocular and motorised 198–455 mm objective.

ANGEL 60 shown with an additional viewing assembly — Additional viewing arrangements
The manufacturer leaflet shows the optical head with an additional viewing assembly.

ANGEL 60 optical head with multifunction handgrips — Multifunction handgrips
Zoom, focus, capture and brake release at your fingertips.

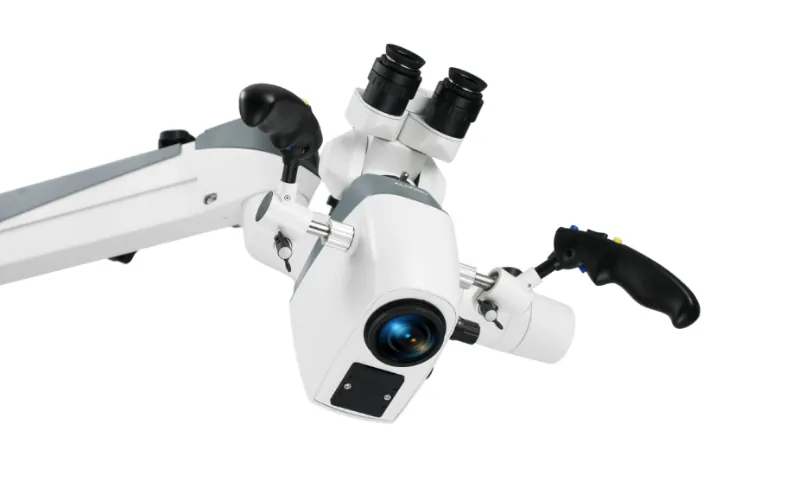

ANGEL 60 optical head seen from below with its objective — Motorised objective
A 198–455 mm working range, adjusted from the handgrips.

Focus, zoom and capture from the handgrip.

Multifunction handgrips control motorised focus and zoom, dimming, photo/video capture and electromagnetic-brake release. The 0–210° inclinable binocular and adjustable balance arm help position the optical head for the working setup.

The built-in 4K 60 FPS camera supports photo and video documentation. Optional 3D or AR imaging, binocular extenders and a three-joint assistant scope offer additional viewing arrangements. Confirm the camera, illumination and control options for your supplied unit.

Motorised zoom: 1:6.25
Motorised objective: 198–455 mm
Built-in camera: 4K / 60 FPS

Images may show optional accessories.

Full feature list

Motorised apochromatic continuous 1:6.25 zoom with 1.7X–19X total magnification.
Motorised 198–455 mm variable objective; optional auxiliary objective extends working distance to 200–610 mm.
0–210° inclinable binocular head with interpupillary-distance adjustment.
Multifunction handgrips for photo/video, freeze, dimming, zoom, focus and one-touch electromagnetic-brake release.
Built-in 4K 60 FPS camera with optional 3D camera or AR system.
White-light LED illumination, orange/green filters and three light-spot sizes; fluorescence on Angel 60F and 60PF.
Optional anti-glare or integrated depth-of-field enhancement, selected as alternatives.
Electromagnetic braking with a 120° / 135° balance arm; 2-joint lock released from the handgrips.
Mobile floor stand standard; fixed-floor, low/high wall and ceiling mounting optional.
Optional FS-3 or FS-4 wireless foot pedal, one-touch autofocus and three-joint assistant scope.
Touch screen; options include voice control and a 4K camera with auto-focus.

Planning your setup

Confirm the objective, eyepieces, imaging system, illumination options, stand and control accessories against the quotation and delivery record.

Prepare for your handover

Discuss ANGEL 60

Specifications

View spec sheet PDF

Optics & observation

ANGEL 60 Optics & observation
Models	Angel 60 (white light, three spot sizes) · Angel 60F (white light plus fluorescence) · Angel 60PF (white light plus fluorescence, FORA pendulum, continuously adjustable spot)
Zoom	Motorised apochromatic 1:6.25 continuous zoom
Total magnification	1.7X–19X
Eyepieces	Standard 12.5X/18B, ±7D; optional 10X/21B, −8D to +6D
Binocular head	0–210° inclination with pupillary distance adjustment knob
Optional binocular extenders	0° extender in 25/35/50 mm lengths; 45° extender; 30° or 90° extender with angle rotation; 30° extender with 8:2 or 5:5 beam splitter and angle rotation
Objective	Motorised 198–455 mm variable objective
Optional auxiliary objective	200–610 mm working distance
Depth of field / anti-glare	Integrated depth-of-field enhancement or anti-glare; select one
Optional imaging	3D camera system or AR system
Touch screen	Yes
Other options	Voice control; three-joint assistant scope

Light & illumination

ANGEL 60 Light & illumination
Illumination	White-light LED; fluorescence on Angel 60F / 60PF (optional on Angel 60)
Filters and light spots	Orange/green filters; maximum, medium and minimum light-spot sizes (continuously adjustable on Angel 60PF)
LED life	>60,000 hours
Illuminance	Maximum ≥100,000 lux

Imaging & documentation

ANGEL 60 Imaging & documentation
Built-in camera	4K 60 FPS; 4K camera with auto-focus optional

Positioning & installation

ANGEL 60 Positioning & installation
Arm / braking	120° / 135° balance arm; 2-joint electromagnetic lock released from the multifunction handgrips
Stand / mounting	Mobile floor stand standard; fixed floor, low- or high-position wall and ceiling mounting optional
Handgrip controls	Photo, video, freeze, dimming, motorised zoom and focus, one-touch unlock and the fitted anti-glare / depth-of-field function; one-touch autofocus optional
Optional foot pedals	FS-3: photo/video. FS-4: photo/video, focus, zoom and dimming

Specifications may vary by option or configuration. Confirm the supplied specifications and compatibility before ordering.

Videos

A product video is not available yet. Our team can help arrange a demonstration of the ANGEL 60.

Arrange a demonstration

Downloads

Start Here

Getting Started With ANGEL 60

Prepare for installation, configuration review and supplier training for your ANGEL 60.

View Start Guide PDF

Brochures & Manuals

Request a document

The manufacturer leaflet describes standard and optional configurations. Confirm the delivered accessories, illumination functions and current operating instructions with our team.
